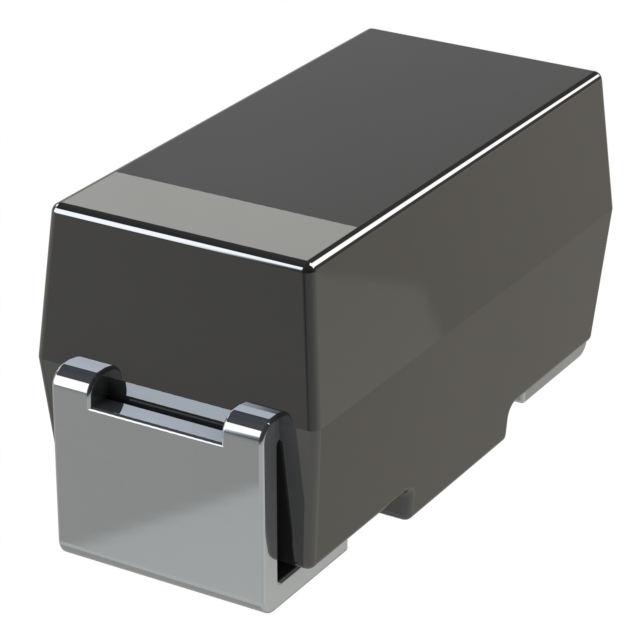

TCJA106M025R0150
ActiveKyocera AVX
CAP, 10UF, 25V, TANT, POLYMER, A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
TCJA106M025R0150
ActiveKyocera AVX
CAP, 10UF, 25V, TANT, POLYMER, A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCJA106M025R0150 |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 150 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.51 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.51 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 2000 | $ 0.23 | ||
| 4000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 14000 | $ 0.21 | |||
| 50000 | $ 0.20 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.23 | |
| 4000 | $ 0.22 | |||
| 8000 | $ 0.22 | |||
| 12000 | $ 0.21 | |||
Description
General part information
TCJA Series
10 µF Molded Tantalum Polymer Capacitor 25 V 1206 (3216 Metric) 150mOhm @ 100kHz
