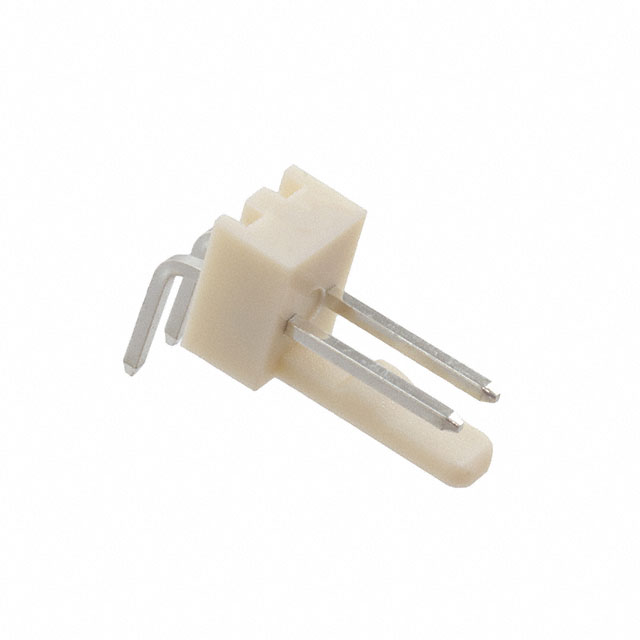

LHA-02-TRB

Active

Adam Tech

CONN WIRE TO BOARD HDR 2 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BAG

Search across all available documentation for this part.

Active

Adam Tech

CONN WIRE TO BOARD HDR 2 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BAG

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-02-TRB

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.45 mm
Contact Length - Mating	0.293 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Material	Mounting Type	Voltage Rating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Termination	Contact Shape	Contact Type	Shrouding	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Connector Type	Style	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions Loaded	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
Adam Tech LHA-02-TS	Brass	Through Hole	250 VAC	Tin	11.5 mm	0.453 in	2	Solder	Square	Male Pin	Shrouded - 1 Wall	0.1 in	2.54 mm	0.134 in	3.4 mm	Friction Lock	UL94 V-2	14.2 mm	0.559 in	Header	Board to Cable/Wire	Nylon Polyamide (PA)	0.291 in	7.4 mm	1	All	Ivory	-25 °C	85 °C	3 A
Adam Tech LHA-02-TRA	Brass	Through Hole Right Angle	250 VAC	Tin	5.8 mm	0.228 in	2	Solder	Square	Male Pin	Shrouded - 1 Wall	0.1 in	2.54 mm	0.134 in	3.4 mm	Friction Lock	UL94 V-2			Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	0.276 in	7 mm	1	All	White	-40 °C	105 ░C	3 A
Adam Tech LHA-02-TRB	Brass	Through Hole Right Angle	250 VAC	Tin	5.8 mm	0.228 in	2	Solder	Square	Male Pin	Shrouded - 1 Wall	0.1 in	2.54 mm	0.134 in	3.4 mm	Friction Lock	UL94 V-2			Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	0.293 in	7.45 mm	1	All	White	-25 °C	85 °C	3 A
