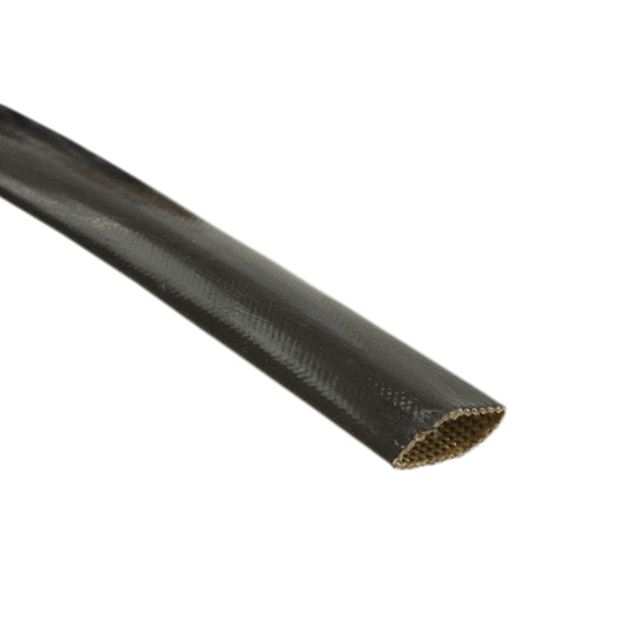

PF1304 BK005

Active

ALPHA WIRE

SLEEVING 0.204" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.204" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF1304 BK005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Black
Diameter - Inside [diameter]	5.18 mm
Diameter - Inside [diameter]	0.204 in
Environment Protection	Corrosion Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Oil Resistant
Material	Fiberglass, PVC Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness [custom]	0.51 mm
Wall Thickness [custom]	0.02 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Environment Protection	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Color	Heat Protection	Material Flammability Rating	Type Attributes	Liquid Protection	Wall Thickness [custom]	Wall Thickness [custom]	Length	Length	Material
ALPHA WIRE PF1304 BK005	-20 C	130 °C	Corrosion Resistant	Sleeving Insulated	5.18 mm	0.204 in	Abrasion Resistant Fray Resistant	Black	Heat Resistant	UL VW-1	Convoluted - Braided	Oil Resistant	0.51 mm	0.02 in	100 ft	30.48 m	Fiberglass PVC Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Fiberglass, PVC Coated Convoluted - Braided Sleeving, Insulated 0.204" (5.18mm) 100' (30.48m)
