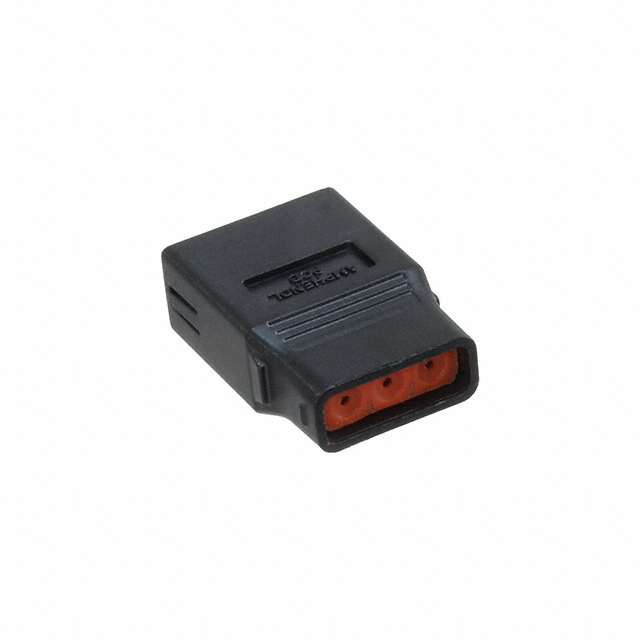

SQR320151

Active

AMPHENOL PCD

CONN PLUG 3POS 20AWG

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG 3POS 20AWG

Technical Specifications

Parameters and characteristics for this part

Part	Note	Features	Mounting Type	Fastening Type	Contact Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Connector Type	Wire Gauge	Wire Type	Color	Number of Positions
AMPHENOL PCD SQR320200	Contacts Not Included	IP67	Free Hanging (In-Line)	Latch Lock	Crimp	Male Pin	-65 ░C	150 °C	1	Polyetherimide (PEI)	Receptacle
AMPHENOL PCD SQR320151		IP67	Free Hanging (In-Line)	Latch Lock		Female Socket			1		Plug	20 AWG	Discrete	Black
AMPHENOL PCD SQR320211-3		IP67	Free Hanging (In-Line)	Latch Lock		Male Pin			1		Receptacle	20 AWG	Discrete	Black
AMPHENOL PCD SQR320210-3	Contacts Not Included	IP67	Free Hanging (In-Line)	Latch Lock	Crimp	Male Pin	-65 ░C	150 °C	1	Polyetherimide (PEI)	Receptacle
AMPHENOL PCD SQR320110-3	Contacts Not Included	IP67	Free Hanging (In-Line)	Latch Lock	Crimp	Female Socket	-65 ░C	150 °C	1	Polyetherimide (PEI)	Plug
AMPHENOL PCD SQR322211-4		IP67	Free Hanging (In-Line)	Latch Lock		Male Pin			1		Receptacle	22 AWG	Discrete	Black	4
AMPHENOL PCD SQR322110-4	Contacts Not Included	IP67	Free Hanging (In-Line)	Latch Lock	Crimp	Female Socket	-65 ░C	150 °C	1	Polyetherimide (PEI)	Plug				4
AMPHENOL PCD SQR322111-4		IP67	Free Hanging (In-Line)	Latch Lock		Female Socket			1		Plug	22 AWG	Discrete	Black	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Rectangular Plug Connector 20 AWG
