09340060306

Active

HARTING Technology Group

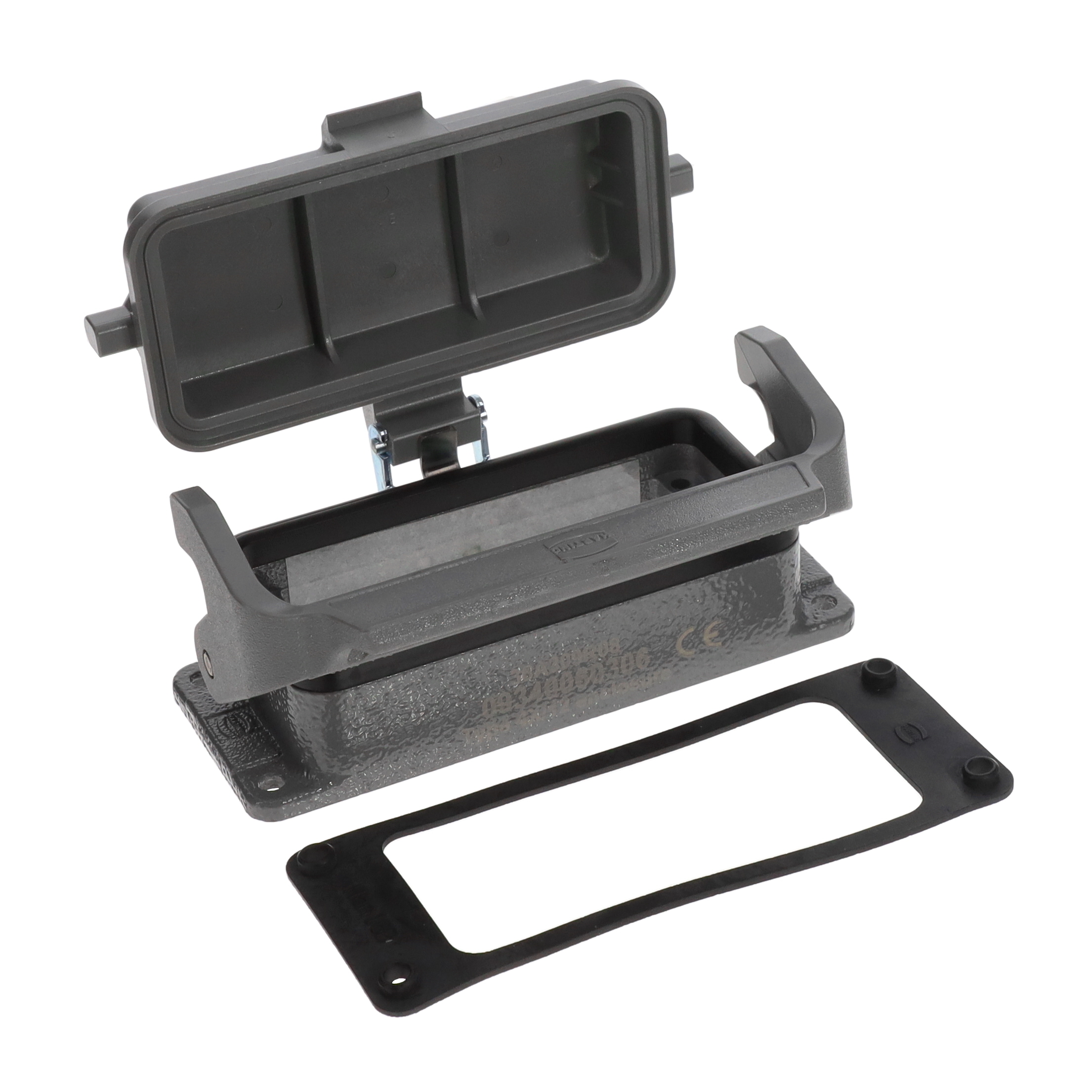

HAN HVE BASE PANEL 1 LEVER THERMOPLASTIC ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HVE BASE PANEL 1 LEVER THERMOPLASTIC ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Style	Features	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Gender	Number of Positions
HARTING Technology Group 09340060205	Locking Clip (1) on Base Bottom	Side Entry	Feed Through	PG21	4.606 "	56 mm	117 mm	2.205 in	2.244 "	57 mm	Base - Box Mount
HARTING Technology Group 09340060501												Female	24
HARTING Technology Group 09340060302	Locking Clip (2) on Hood	Bottom Entry	Cover		4.449 "	28.9 mm	113 mm	1.138 "	1.709 in	43.4 mm	Base - Panel Mount
HARTING Technology Group 09340060307	Locking Clip (1) on Base Bottom	Bottom Entry			4.449 "	28.9 mm	113 mm	1.138 "	1.693 in	43 mm	Base - Panel Mount
HARTING Technology Group 09340060404	Locking Clip (1) on Base Bottom	Top Entry		PG21	3.681 "	45 mm	93.5 mm	1.772 in	1.693 in	43 mm	Hood
HARTING Technology Group 09340060701	Locking Clip (2) on Hood Top	Bottom Entry	Cable to Cable	PG21	3.681 "	47.4 mm	93.5 mm	1.866 "	1.693 in	43 mm	Hood - Coupling
HARTING Technology Group 09340060306	Locking Clip (1) on Base Bottom	Bottom Entry	Cover		4.449 "	28.9 mm	113 mm	1.138 "	1.693 in	43 mm	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry
