G125-MW10300F94

Active

Harwin Inc.

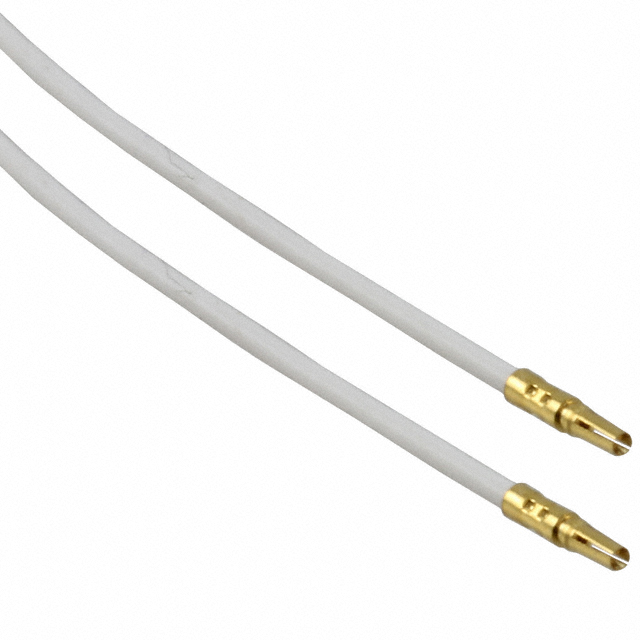

MALE-FEMALE CONTACTS WITH 26AWG WIRE, 300MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE-FEMALE CONTACTS WITH 26AWG WIRE, 300MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact End	Color	Number of Conductors	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Contact Finish	Number of Rows	Length [x]	Length [x]
Harwin Inc. G125-MW10150F94	Socket to Pin	White	1	26 AWG	0.2 µm	8 çin	149.86 mm	5.9 "	Gold	1
Harwin Inc. G125-MW10300F94	Socket to Pin	White	1	26 AWG	0.2 µm	8 çin	300 mm	11.8 in	Gold	1
Harwin Inc. G125-MW30150F94	Socket to Pin	White	1	30 AWG	0.2 µm	8 çin	149.86 mm	5.9 "	Gold	1
Harwin Inc. G125-MW20150L94	Pin to Cable (Round)	White	1	28 AWG	0.2 µm	8 çin	149.86 mm	5.9 "	Gold	1
Harwin Inc. G125-MW20300M94		White	1	28 AWG	0.2 µm	8 çin	300 mm	11.8 in	Gold	1
Harwin Inc. G125-MW10150M94		White	1	26 AWG	0.2 µm	8 çin	149.86 mm	5.9 "	Gold	1
Harwin Inc. G125-MW10150L94	Pin to Cable (Round)	White	1	26 AWG	0.2 µm	8 çin	149.86 mm	5.9 "	Gold	1
Harwin Inc. G125-MW20450L94	Pin to Cable (Round)	White	1	28 AWG	0.2 µm	8 çin			Gold	1	450 mm	17.7 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White 26 AWG Jumper Lead Socket to Pin Gold 11.8" (300.0mm)
