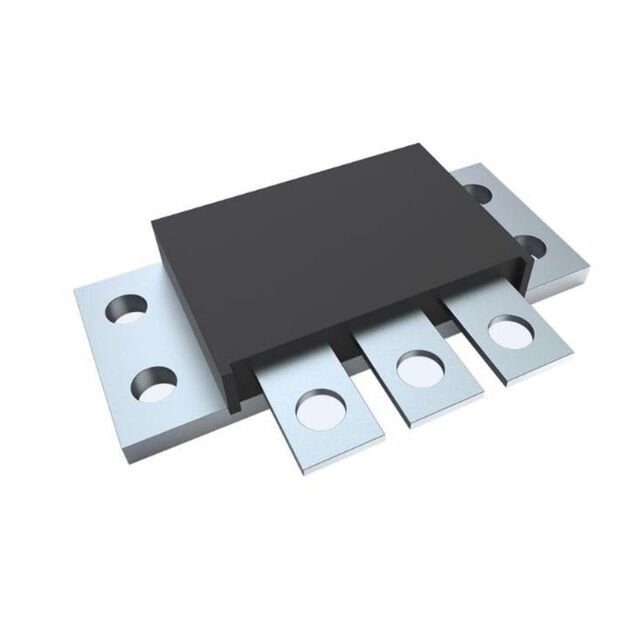

161CMQ040

Active

SMC Diode Solutions

DIODE MOD SCHOTT 40V 80A TO249AA

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 40V 80A TO249AA

Technical Specifications

Parameters and characteristics for this part

Specification	161CMQ040

Current - Average Rectified (Io) (per Diode) [custom]	80 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-249AA
Speed	200 mA, 500 ns
Supplier Device Package	TO-249AA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	880 mV

Part	Diode Configuration	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Current - Average Rectified (Io) (per Diode) [custom]	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Mounting Type
SMC Diode Solutions 161CMQ035	1 Pair Common Cathode	200 mA 500 ns	175 ░C	-55 C	Schottky	80 A	35 V	TO-249AA	5 mA	880 mV	TO-249AA	Chassis Mount
SMC Diode Solutions 161CMQ040	1 Pair Common Cathode	200 mA 500 ns	175 ░C	-55 C	Schottky	80 A	40 V	TO-249AA	5 mA	880 mV	TO-249AA	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	528	$ 33.80

General part information

Diode Array 1 Pair Common Cathode 40 V 80A Chassis Mount TO-249AA
