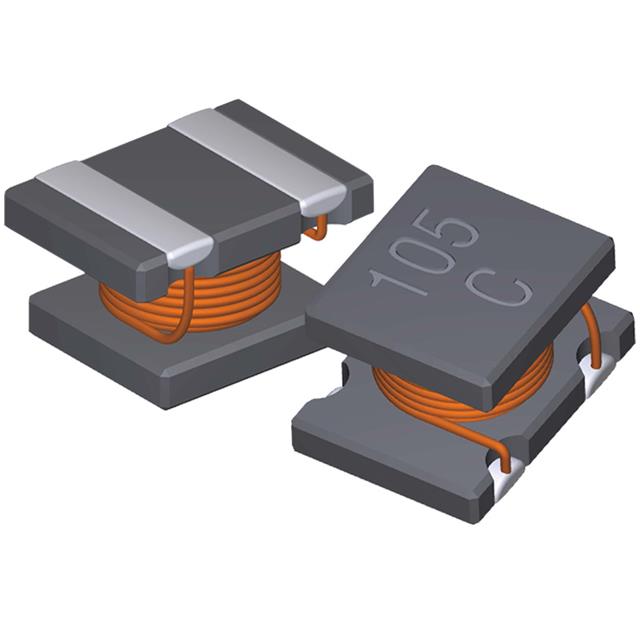

84472C

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR, 4.7UH, 20%, 1 ELEMENT, SMD, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

84472C

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR, 4.7UH, 20%, 1 ELEMENT, SMD, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	84472C

Current Rating (Amps)	1.3 A
DC Resistance (DCR) [Max]	150 mOhm
Height - Seated (Max)	2.9 mm
Height - Seated (Max) [Max]	0.114 in
Inductance	4.7 ÁH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.13 in
Size / Dimension [y]	3.3 mm
Tolerance	20 %
Type	Wirewound

84 Series

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Type	Inductance	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Tolerance	Shielding	DC Resistance (DCR)
Murata Power Solutions Inc. 84224C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	0.2 A	Wirewound	220 µH	Nonstandard	2.9 mm	0.114 in	4.6 Ohm	10 %	Unshielded
Murata Power Solutions Inc. 84683C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	0.38 A	Wirewound	68 µH	Nonstandard	2.9 mm	0.114 in	1.6 Ohm	10 %	Unshielded
Murata Power Solutions Inc. 84102C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	2.8 A	Wirewound	1 µH	Nonstandard	2.9 mm	0.114 in	80 mOhm	20 %	Unshielded
Murata Power Solutions Inc. 84473C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	0.42 A	Wirewound	47 µH	Nonstandard	2.9 mm	0.114 in	1.1 Ohm	10 %	Unshielded
Murata Power Solutions Inc. 84472C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	1.3 A	Wirewound	4.7 ÁH	Nonstandard	2.9 mm	0.114 in	150 mOhm	20 %	Unshielded
Murata Power Solutions Inc. 84684C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	120 mA	Wirewound	680 µH	Nonstandard	2.9 mm	0.114 in		10 %	Unshielded	11.5 Ohm
Murata Power Solutions Inc. 84332C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	1.5 A	Wirewound	3.3 µH	Nonstandard	2.9 mm	0.114 in		20 %	Unshielded	120 mOhm
Murata Power Solutions Inc. 84105C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	0.09 A	Wirewound	1 mH	Nonstandard	2.9 mm	0.114 in	18 Ohm	10 %	Unshielded
Murata Power Solutions Inc. 84474C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	140 mA	Wirewound		Nonstandard	2.9 mm	0.114 in	8.5 Ohm	10 %	Unshielded
Murata Power Solutions Inc. 84153C	Surface Mount	4.5 mm	0.13 in	3.3 mm	0.177 in	125 °C	-40 °C	750 mA	Wirewound	15 µH	Nonstandard	2.9 mm	0.114 in	450 mOhm	10 %	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.47
		25	$ 0.42
		50	$ 0.39
		100	$ 0.36
		250	$ 0.33
		500	$ 0.30
		1000	$ 0.28
	Digi-Reel®	1	$ 0.60
		10	$ 0.47
		25	$ 0.42
		50	$ 0.39
		100	$ 0.36
		250	$ 0.33
		500	$ 0.30
		1000	$ 0.28
	Tape & Reel (TR)	2000	$ 0.21
LCSC	Piece	1	$ 0.29
		200	$ 0.12
		500	$ 0.11
		1000	$ 0.11
Newark	Each	1000	$ 0.25

Description

General part information

84 Series

4.7 µH Unshielded Wirewound Inductor 1.3 A 150mOhm Max Nonstandard
