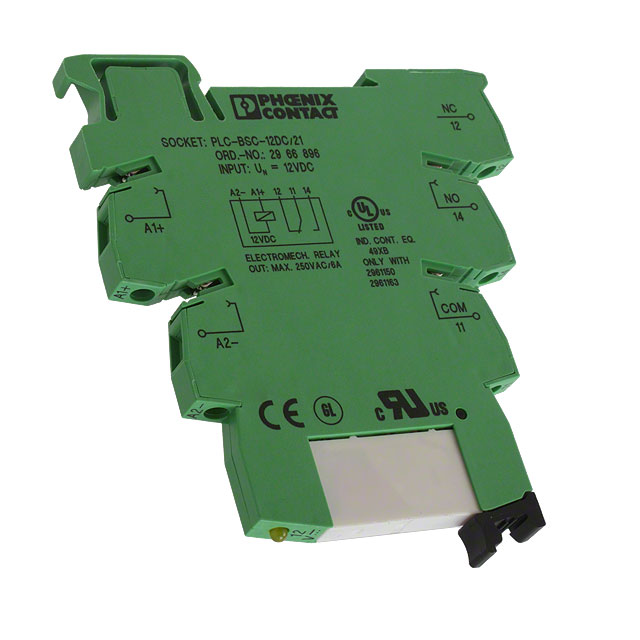

2966919

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	2966919

Approval Agency	cULus, DNV, UL, EAC
Coil Current	15.3 mA
Coil Resistance	784 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	50 mA
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	5 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	36 VDC, 30 VAC
Termination Style	Screw Terminal

Part	Coil Current	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Approval Agency	Coil Type	Relay Type	Switching Voltage	Coil Resistance	Contact Material	Features	Contact Rating (Current)	Termination Style	Release Time	Coil Voltage	Operate Time
Phoenix Contact 2966906	15.3 mA	DIN Rail	-25 °C	60 °C	SPDT (1 Form C)	CE UKCA	Non Latching	General Purpose	250 VAC 250 VDC	784.314 Ohms	Silver Tin Oxide (AgSnO)	Lighted Indicator Socket Included	6 A	Screw Terminal	8 ms	12 VDC	5 ms
Phoenix Contact 2966919	15.3 mA	DIN Rail	-25 °C	60 °C	SPDT (1 Form C)	cULus DNV EAC UL	Non Latching	General Purpose	30 VAC 36 VDC	784 Ohms	Gold (Au) Silver (Ag)	Lighted Indicator Socket Included	50 mA	Screw Terminal	8 ms	12 VDC	5 ms
Phoenix Contact 2966980		DIN Rail	-25 °C	60 °C	SPDT (1 Form C)	CE UKCA	Non Latching	General Purpose	30 VAC 30 VDC		Silver Tin Oxide (AgSnO)	Socket Included	6 A	Screw Terminal		36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.71

General part information

General Purpose Relay SPDT (1 Form C) DIN Rail
