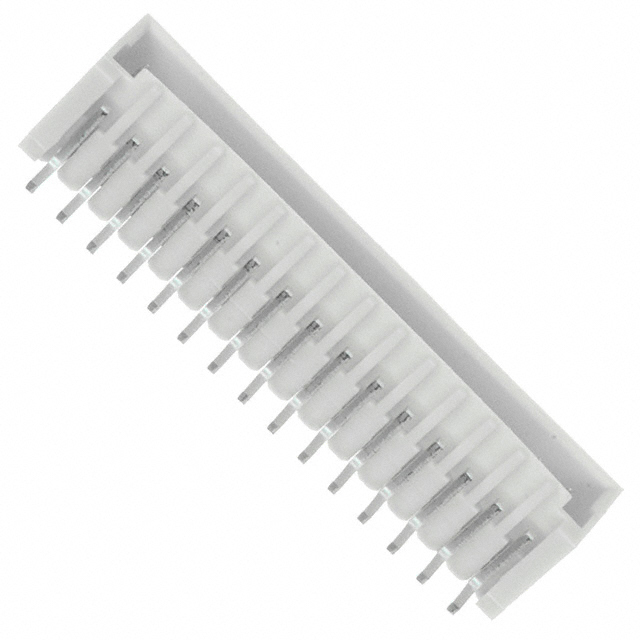

0874371543
ActiveMolex
CONN HEADER SMD 15POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
0874371543
ActiveMolex
CONN HEADER SMD 15POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0874371543 |
|---|---|
| Applications | Medical, General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Length - Mating | 0.106 in |
| Contact Length - Mating | 2.7 mm |
| Contact Material | Brass Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Beige |
| Insulation Height | 0.199 in |
| Insulation Height | 5.05 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 7.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.51 | |
| 10 | $ 1.14 | |||
| 100 | $ 0.89 | |||
| 500 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.51 | ||
| 10 | $ 1.14 | |||
| 100 | $ 0.89 | |||
| 500 | $ 0.76 | |||
| Tape & Reel (TR) | 1000 | $ 0.60 | ||
Description
General part information
87437 Series
1.50mm Pitch, Pico-SPOX PCB Header, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 15 Circuits, Tape and Reel, with Cap, Beige
