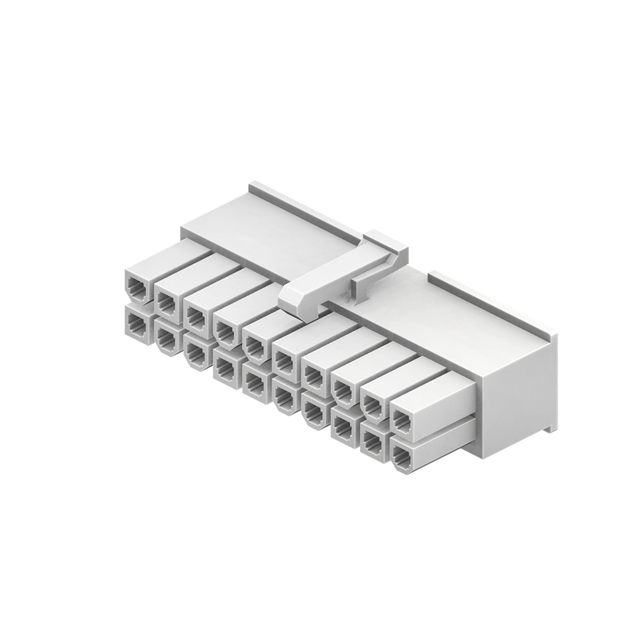

4281-2-20-D

Active

CnC Tech, LLC

CONN RCPT HSG 20POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4281-2-20-D

Active

CnC Tech, LLC

CONN RCPT HSG 20POS 4.20MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4281-2-20-D

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

4281-2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Material	Connector Type	Fastening Type	Color	Contact Type	Contact Termination	Mounting Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Number of Rows	Note	Number of Positions
CnC Tech, LLC 4281-2-22-D	-40 °C	105 ░C	22 positions	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-14-D	-40 °C	105 ░C	14	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-12-D	-40 °C	105 ░C	12	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-20-D	-40 °C	105 ░C	20	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-04-D	-40 °C	105 ░C	4	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-10-D	-40 °C	105 ░C	10	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-16-D	-40 °C	105 ░C		Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included	16
CnC Tech, LLC 4281-2-08-D	-40 °C	105 ░C	8	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included
CnC Tech, LLC 4281-2-24-D	-40 °C	105 ░C	24	Polyamide (PA66) Nylon 6/6	Receptacle	Latch Lock	White	Female Socket	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	2	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.39
		10	$ 0.34
		25	$ 0.31
		50	$ 0.29
		100	$ 0.28
		250	$ 0.25
		500	$ 0.24
		1200	$ 0.21

Description

General part information

4281-2 Series

20 Rectangular Connectors - Housings Receptacle White 0.165" (4.20mm)
