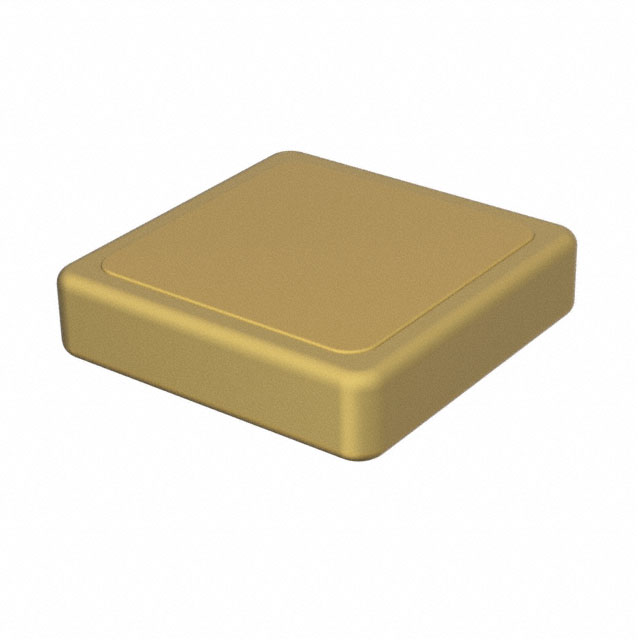

D25BJ101K1BX

Active

Knowles Johanson Manufacturing

CAP CER 100PF 100V BG SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 100PF 100V BG SMD

Technical Specifications

Parameters and characteristics for this part

Specification	D25BJ101K1BX

Applications	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	100 pF
Features	Bonding Mountable, Single Layer
Mounting Type	Surface Mount, SLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard SMD
Temperature Coefficient	BG
Thickness (Max) [Max]	0.22 mm
Thickness (Max) [Max]	0.009 in
Tolerance	10 %
Voltage - Rated	100 V

Part	Tolerance	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Capacitance	Applications	Voltage - Rated
Knowles Johanson Manufacturing D25BJ101K1BX	10 %	BG	0.22 mm	0.009 in	Surface Mount SLCC	Nonstandard SMD	-55 °C	125 °C	Bonding Mountable Single Layer	100 pF	Bypass Decoupling High Frequency Microwave RF	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 pF ±10% 100V Ceramic Capacitor BG Nonstandard SMD
