AFBR-5803TZ

Active

Broadcom Limited

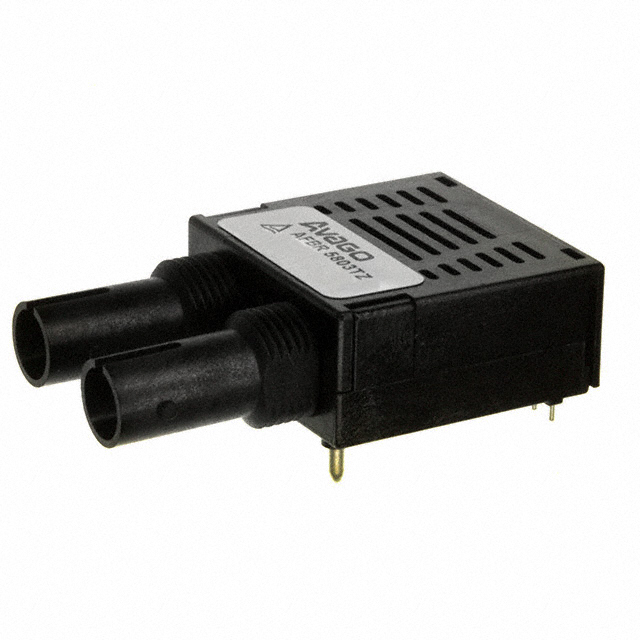

TXRX OPT 1X9 100MBPS DUPLEX ST

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN

AFBR-5803TZ

Active

Broadcom Limited

TXRX OPT 1X9 100MBPS DUPLEX ST

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFBR-5803TZ

Applications	General Purpose
Connector Type	ST
Data Rate	100 Mbps
Mounting Type	Through Hole
Voltage - Supply	5 V, 3.3 V
Wavelength	1300 nm

AFBR-5803 Series

Part	Mounting Type	Data Rate	Applications	Voltage - Supply	Connector Type	Wavelength
Broadcom Limited AFBR-5803Z	Through Hole	100 Mbps	General Purpose	3.3 V 5 V	SC	1300 nm
Broadcom Limited AFBR-5803AQZ	Through Hole	100 Mbps	Ethernet	3.3 V 5 V	SC	1300 nm
Broadcom Limited AFBR-5803TZ	Through Hole	100 Mbps	General Purpose	3.3 V 5 V	ST	1300 nm
Broadcom Limited AFBR-5803ATQZ	Through Hole	100 Mbps	Ethernet	3.3 V 5 V	ST	1300 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.86
		10	$ 31.17
		100	$ 27.19
Newark	Each	1	$ 40.29
		5	$ 36.32
		10	$ 32.33
		30	$ 30.96
		50	$ 29.60
		100	$ 28.23

Description

General part information

AFBR-5803 Series

The AFBR-5803TZ is a 125MBd MMF Transceiver for fast Ethernet (100Base-FX)/ATM/FDDI. The device provides the system designer with products to implement a range of Fast Ethernet, FDDI and ATM (Asynchronous transfer mode) designs at the 100Mbps-125MBd rate. The transceivers are all in the industry standard 1 x 9 SIP package style with either a duplex SC or a duplex ST* connector interface.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
