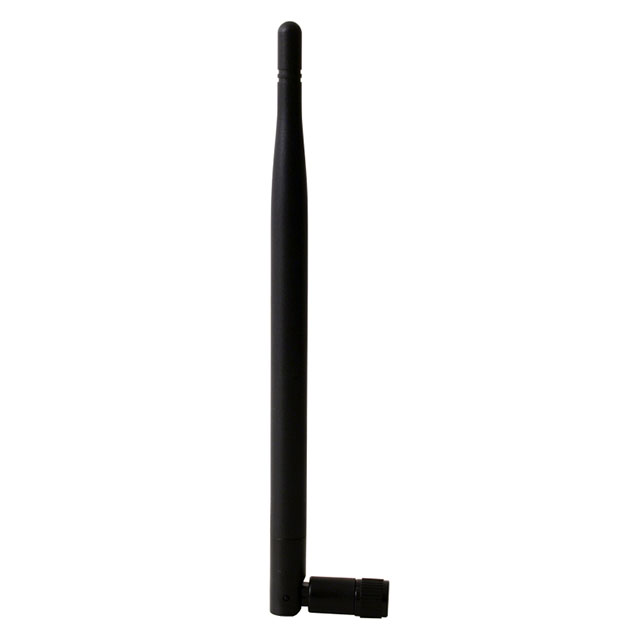

TA-S13B-B-WE02
ActiveUnictron Technologies Corporation
WIFI HINGE ROTATABLE TERMINAL AN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA-S13B-B-WE02
ActiveUnictron Technologies Corporation
WIFI HINGE ROTATABLE TERMINAL AN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-S13B-B-WE02 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Wi-Fi |
| Frequency (Center/Band) | 5.8 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Gain | 4.65 dBi, 4.64 dBi, 4.42 dBi, 4.74 dBi, 4.27 dBi, 3.91 dBi, 5.23 dBi |
| Height (Max) [Max] | 6.693 in |
| Height (Max) [Max] | 170 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Return Loss | 10 dB |
| RF Family/Standard | WiFi |
| Termination | RP-SMA Male |
| VSWR | 1.92 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.33 | |
| 10 | $ 21.52 | |||
| 100 | $ 18.38 | |||
Description
General part information
TA-S13B Series
2.4GHz, 5.8GHz Wi-Fi Whip, Tilt RF Antenna 4.64dBi, 4.74dBi, 4.42dBi, 5.23dBi, 4.27dBi, 4.27dBi, 4.65dBi, 3.91dBi RP-SMA Male Connector Mount
