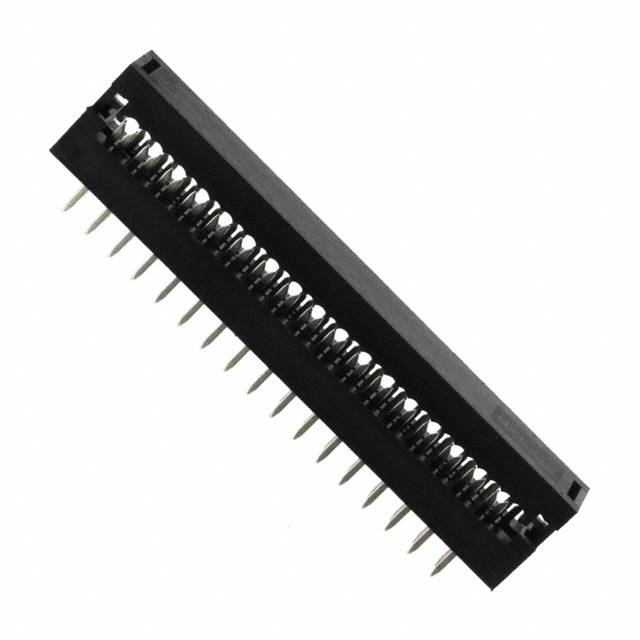

SIP110-PPPC-D17-ST-BK

Active

Sullins Connector Solutions

CONN DIP HDR IDC 34POS 28AWG PCB

Deep-Dive with AI

Search across all available documentation for this part.

SIP110-PPPC-D17-ST-BK

Active

Sullins Connector Solutions

CONN DIP HDR IDC 34POS 28AWG PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIP110-PPPC-D17-ST-BK

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Black
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Feed Through
Mounting Type	Through Hole, Press-Fit
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG

SIP110 Series

...

Part	Board-Side Pitch	Board-Side Pitch	Mounting Type	Row Spacing [x]	Row Spacing	Contact Finish	Features	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Color	Cable Pitch	Cable Pitch	Connector Type	Number of Rows	Cable Termination	Number of Positions	Contact Finish Thickness	Number of Positions
Sullins Connector Solutions SIP110-PPEC-D15-ST-BK	0.1 in	2.54 mm	Through Hole	0.1 in	2.54 mm	Tin	Cover	All	2.54 µm	100 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	30
Sullins Connector Solutions SIP110-PPJC-D13-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All	0.38 µm	15 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	26
Sullins Connector Solutions SIP110-PPPC-D17-ST-BK	0.1 in	2.54 mm	Through Hole Press-Fit	0.1 in	2.54 mm	Gold	Feed Through	All			28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	34	Flash
Sullins Connector Solutions SIP110-PPJC-D04-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All	0.38 µm	15 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	8
Sullins Connector Solutions SIP110-PPJC-D30-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All	0.38 µm	15 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	60
Sullins Connector Solutions SIP110-PPKC-D08-ST-BK	0.1 in	2.54 mm	Through Hole	0.1 in	2.54 mm	Gold	Cover	All	0.38 µm	15 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC			16
Sullins Connector Solutions SIP110-PPPC-D06-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All			28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	12	Flash
Sullins Connector Solutions SIP110-PPPC-D10-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All			28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	20	Flash
Sullins Connector Solutions SIP110-PPEC-D10-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Tin	Cover	All	2.54 µm	100 µin	28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	20
Sullins Connector Solutions SIP110-PPVC-D04-SK-BK	0.1 in	2.54 mm	Kinked Pin Through Hole	0.1 in	2.54 mm	Gold	Cover	All			28 AWG	Black	1.27 mm	0.05 in	DIP Header Ribbon Cable	2	IDC	8	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 0.87

Description

General part information

SIP110 Series

34 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG Through Hole, Press-Fit

Documents

Technical documentation and resources

No documents available
