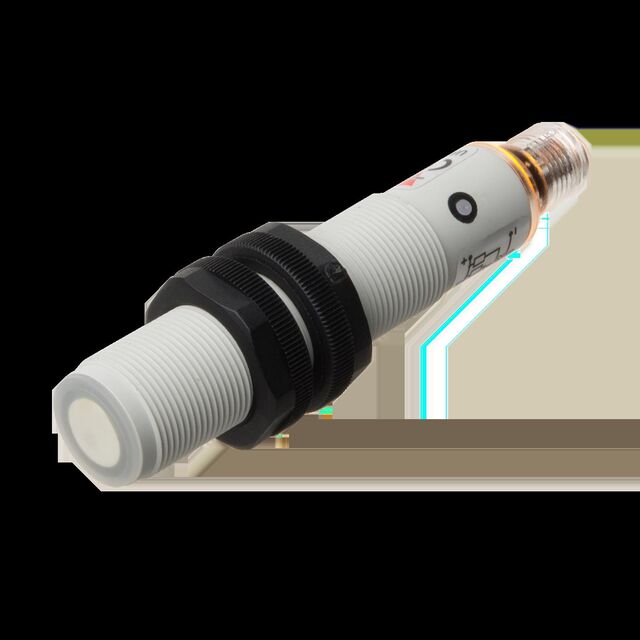

UA18CAD04NKM1TI

Active

CARLO GAVAZZI

UPROX DR TI PL M18 0-10V+NPN, PLG

Search across all available documentation for this part.

Active

CARLO GAVAZZI

UPROX DR TI PL M18 0-10V+NPN, PLG

Technical Specifications

Parameters and characteristics for this part

Specification	UA18CAD04NKM1TI

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Type	Analog Voltage, NPN
Package / Case	Cylinder, Threaded - M18
Response Frequency	10 Hz
Sensing Distance [Max]	15.748 in
Sensing Distance [Max]	400 mm
Sensing Distance [Min]	1.969 in
Sensing Distance [Min]	5 cm
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	15 VDC

Part	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Termination Style	Sensor Type	Indicator [custom]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Material - Body	Response Frequency	Ingress Protection	Shielding	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
CARLO GAVAZZI UA18CAD04NKM1TI	15.748 in	1.969 in	400 mm	5 cm	Connector	Ultrasonic	LED	Analog Voltage NPN	15 VDC	30 VDC	Polybutylene Terephthalate (PBT)	10 Hz	IP67	Unshielded	Cylinder Threaded - M18	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UPROX DR TI PL M18 0-10V+NPN, PLG
