5604028
ObsoletePhoenix Contact

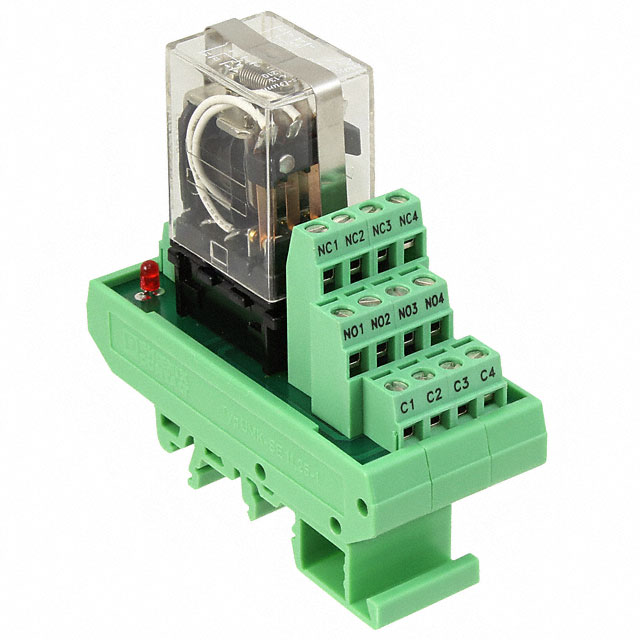

RELAY GEN PURPOSE 4PDT 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
5604028
ObsoletePhoenix Contact
RELAY GEN PURPOSE 4PDT 5A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5604028 |
|---|---|
| Coil Current | 36.9 mA |
| Coil Resistance | 650 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 5 A |
| Features | Socket Included, Diode |
| Load - Max Switching | 1200 VA, 150 W |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage | 30 VDC, 240 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
56040 Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil DIN Rail
Documents
Technical documentation and resources
No documents available
