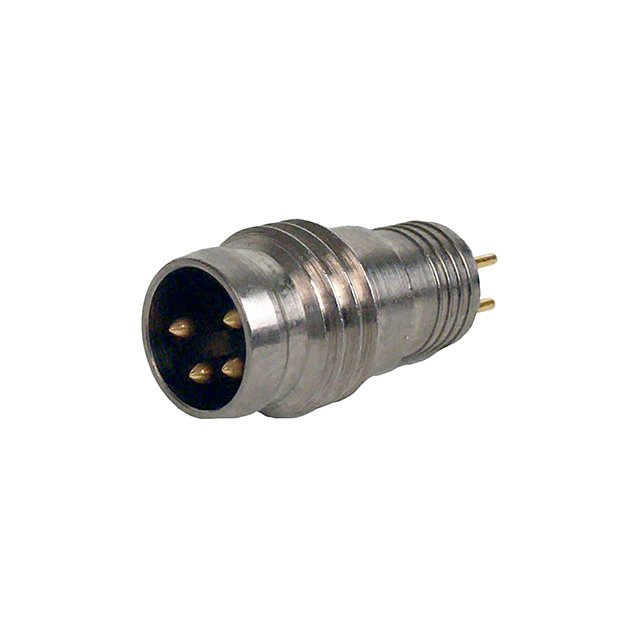

613PCBM
ActiveSwitchcraft Inc.
CONN RCPT MALE 3POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
613PCBM
ActiveSwitchcraft Inc.
CONN RCPT MALE 3POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 613PCBM |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Current Rating (Amps) | 3 A |
| Fastening Type | Snap-In, Threaded |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-3 |
| Termination | Solder |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.61 | |
Description
General part information
613PCB Series
3 Position Circular Connector Receptacle, Male Pins Solder
