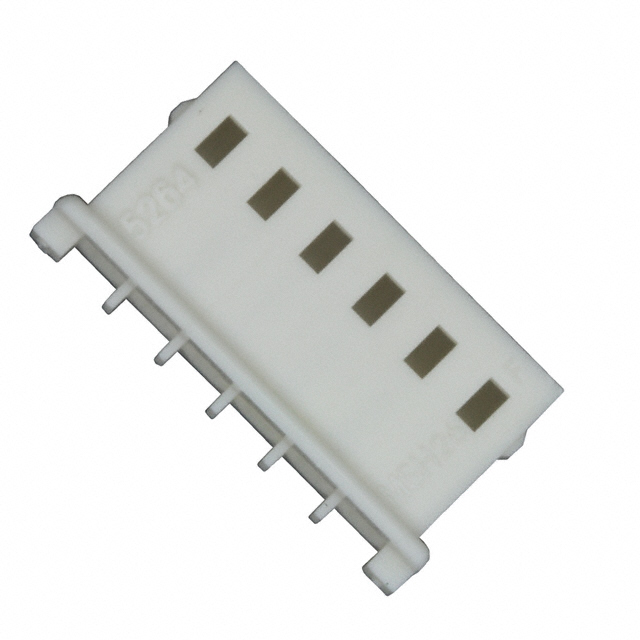

0050375063

Active

Molex

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0050375063

Active

Molex

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0050375063

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

005037 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Note	Fastening Type	Contact Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Termination	Connector Type	Number of Rows
Molex 0050375123	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	12	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375023	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	2	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375043	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	4	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375053	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket		Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375143	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	14	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375093	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	9	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375073	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	7	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375063	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	6	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375153	105 ░C	-55 °C	Contacts Not Included	Locking Ramp	Female Socket	15	Free Hanging (In-Line)	0.098 in	2.5 mm	Nylon Polyamide (PA)	Crimp	Receptacle	1
Molex 0050375183			Contacts Not Included	Locking Ramp	Female Socket	18	Free Hanging (In-Line)	0.098 in	2.5 mm		Crimp	Receptacle	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.13
		25	$ 0.12
		50	$ 0.11
		100	$ 0.10
		250	$ 0.09
		500	$ 0.08
		1000	$ 0.08
		2500	$ 0.08

Description

General part information

005037 Series

6 Rectangular Connectors - Housings Receptacle 0.098" (2.50mm)
