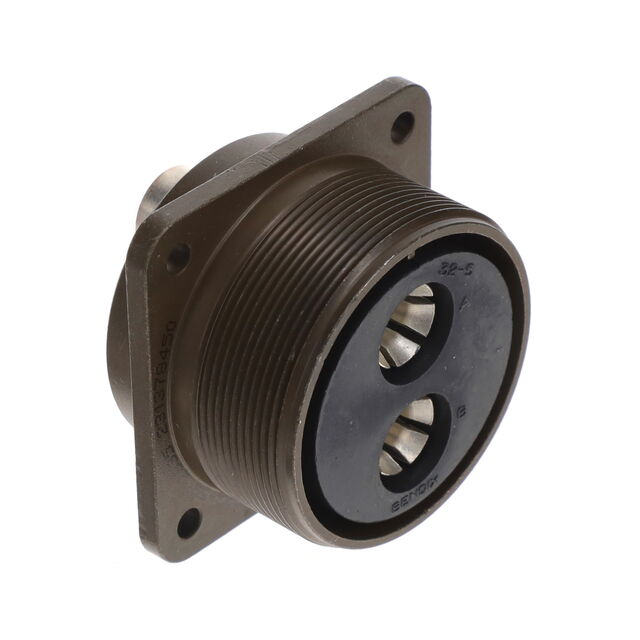

MS3102A32-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102A32-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A32-5S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	150 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-5
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3102A32 Series

Part	Number of Positions	Contact Finish - Mating	Primary Material	Shell Material	Grade	Insert Material	Color	Orientation	Shielding	Mounting Feature	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Applications	Shell Finish	Qualification	Voltage Rating	Shell Size - Insert
Amphenol Industrial Operations MS3102A32-17PW
Amphenol Industrial Operations MS3102A32-7S	35	Silver	Metal	Aluminum Alloy	Military	Neoprene	Olive Drab	N	Unshielded	Flange	7	32	Environment Resistant	Receptacle Female Sockets	Copper Alloy	-55 °C	125 °C	13 A 23 A	Marine Military	Olive Drab Chromate over Cadmium	MIL-DTL-5015
Amphenol Industrial Operations MS3102A32-13S-RES
Amphenol Industrial Operations MS3102A32-6S
Amphenol Industrial Operations MS3102A32-20S
Amphenol Industrial Operations MS3102A32-15P	8	Silver	Metal	Aluminum Alloy	Military	Neoprene	Olive Drab	N	Unshielded	Flange	32	15	Environment Resistant	Male Pins Receptacle	Copper Alloy	-55 °C	125 °C	23 A 150 A	Marine Military	Olive Drab Chromate over Cadmium	MIL-DTL-5015	900 VAC 1250 VDC
Amphenol Industrial Operations MS3102A32-1P
Amphenol Industrial Operations MS3102A32-7P	35	Silver	Metal	Aluminum Alloy	Military	Neoprene	Olive Drab	N	Unshielded	Flange	7	32	Environment Resistant	Male Pins Receptacle	Copper Alloy	-55 °C	125 °C	13 A 23 A	Marine Military	Olive Drab Chromate over Cadmium	MIL-DTL-5015
Amphenol Industrial Operations MS3102A32-5S	2	Silver	Metal	Aluminum Alloy	Military	Neoprene	Olive Drab	N	Unshielded	Flange			Environment Resistant	Receptacle Female Sockets	Copper Alloy	-55 °C	125 °C	150 A	Marine Military	Olive Drab Chromate over Cadmium	MIL-DTL-5015	900 VAC 1250 VDC	32-5
Amphenol Industrial Operations MS3102A32-9P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.28
		10	$ 45.22
		25	$ 43.48
		50	$ 42.03
		100	$ 39.71
		250	$ 38.55

Description

General part information

MS3102A32 Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
