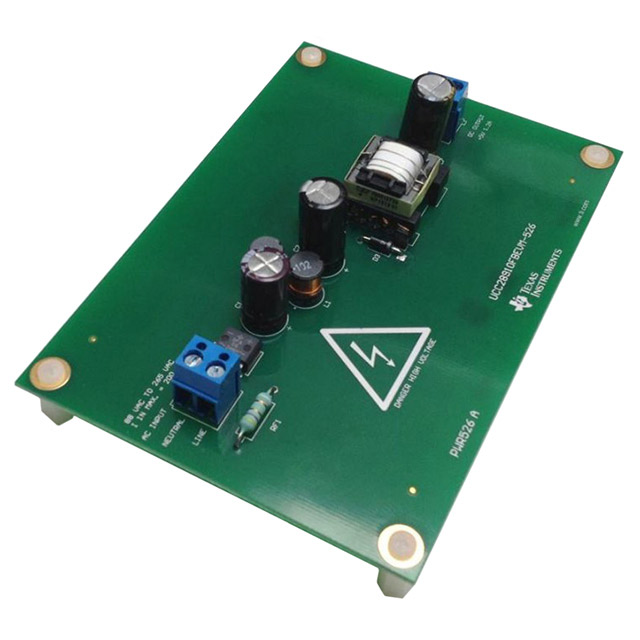

UCC28910FBEVM-526

Active

Texas Instruments

EVAL BOARD PWM SWITCHER UCC28910

Search across all available documentation for this part.

Active

Texas Instruments

EVAL BOARD PWM SWITCHER UCC28910

Technical Specifications

Parameters and characteristics for this part

Part	Regulator Topology	Current - Output	Voltage - Output	Main Purpose	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Operating Temperature [Min]	Operating Temperature [Max]	Output Isolation	Fault Protection	Supplier Device Package	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Internal Switch(s)	Power (Watts)	Voltage - Breakdown	Topology	Voltage - Start Up
Texas Instruments UCC28910FBEVM-526	Flyback	1.2 A	5 V	AC/DC Primary Side	UCC28910	85 VAC	265 VAC	Isolated	1	Fully Populated	Board(s)
Texas Instruments UCC28910DR												-40 °C	125 ¯C	Isolated	Current Limiting Over Temperature Over Voltage	7-SOIC	Surface Mount	420 Hz	115 kHz	7	8-SOIC	3.9 mm	0.154 in	6.5 V	30 V		9.5 W	700 V	Flyback	9.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.80

General part information

UCC28910 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
