BN15MW

Active

IDEC

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2 MM², SCREW, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BN15MW

Active

IDEC

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2 MM², SCREW, 10 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BN15MW

Color	Black
Current - UL	10 A
Material - Insulation	Polyphenylene Ether (PPE)
Number of Levels	1
Number of Positions	2
Terminal - Width [y]	8 mm
Termination Style	Screw
Type	Feed Through
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

BN15 Series

Part	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Material - Insulation	Termination Style	Terminal - Width [y]	Voltage - UL	Number of Positions	Current - UL	Type
IDEC BN15MW	Black	14 AWG	22 AWG	1	Polyphenylene Ether (PPE)	Screw	8 mm	600 V	2	10 A	Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 0.86
		25	$ 0.75
		50	$ 0.71
Newark	Each	1	$ 1.46
		10	$ 1.38
		25	$ 1.31
		50	$ 1.24
		100	$ 1.20
		250	$ 1.15

Description

General part information

BN15 Series

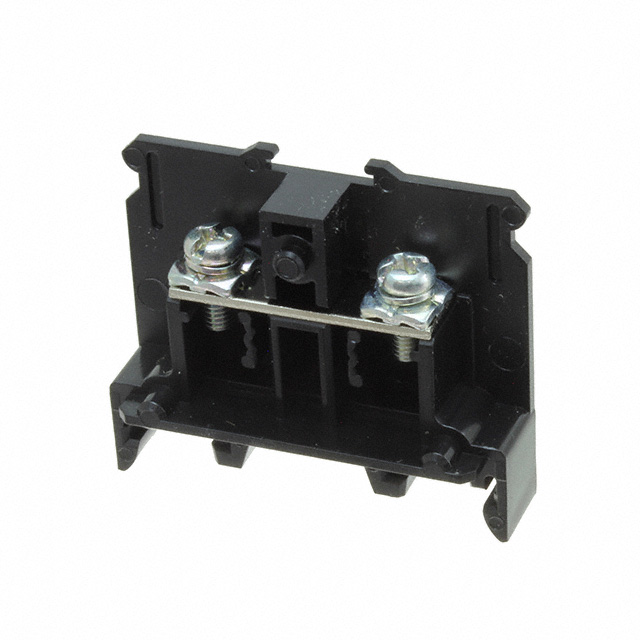

The BN15MW is a 1-position 1-level mounted on 35mm DIN rail Terminal Block molded from UL94V-0 material with excellent flame and shock resistance. Self lifting standard type, 600V 10A rated, M3 screw type and touch down terminal type, 22-14 AWG wire size and PPE housing.
