5GSH935
ActiveMEC Switches

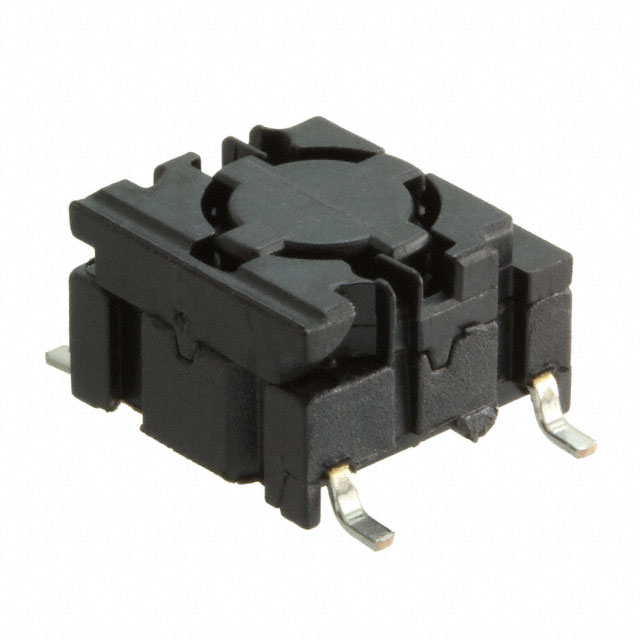

SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
5GSH935
ActiveMEC Switches
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5GSH935 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 6.4 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 350 gf |
| Operating Temperature [Max] | 160 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 10.1 mm |
| Outline [y] | 10.1 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | Gull Wing |
5GSH Series
| Part | Outline [x] | Outline [y] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Rating @ Voltage | Switch Function | Switch Travel | Actuator Material | Illumination | Termination Style | Mechanical Life | Operating Force | Mounting Type | Illumination Type, Color | Actuator Type | Circuit | Illumination Voltage (Nominal) | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | LED Yellow | Plunger for Cap | SPST-NO | 2 VDC | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof |
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | Blue LED | Plunger for Cap | SPST-NO | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | |
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Non-Illuminated | Gull Wing | 10000000 Cycles | 650 gf | Surface Mount | Plunger for Cap | SPST-NO | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | ||
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | Green LED | Plunger for Cap | SPST-NO | 2.2 VDC | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof |
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Non-Illuminated | Gull Wing | 10000000 Cycles | 200 gf | Surface Mount | Plunger for Cap | SPST-NO | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | ||
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Non-Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | Plunger for Cap | SPST-NO | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | ||
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | Green LED | Plunger for Cap | SPST-NO | 3.3 VDC | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | |
MEC Switches | 10.1 mm | 10.1 mm | -40 °C | 160 °C | Sealed - Flux Protection | 0.05 A 24 VDC | Off-Mom | 1 mm | Polyphenylene Sulfide (PPS) | Illuminated | Gull Wing | 10000000 Cycles | 350 gf | Surface Mount | Green/Red LED | Plunger for Cap | SPST-NO | 2 VDC 2.2 VDC | 6.4 mm | Top Actuated | IP67 - Dust Tight Waterproof |
