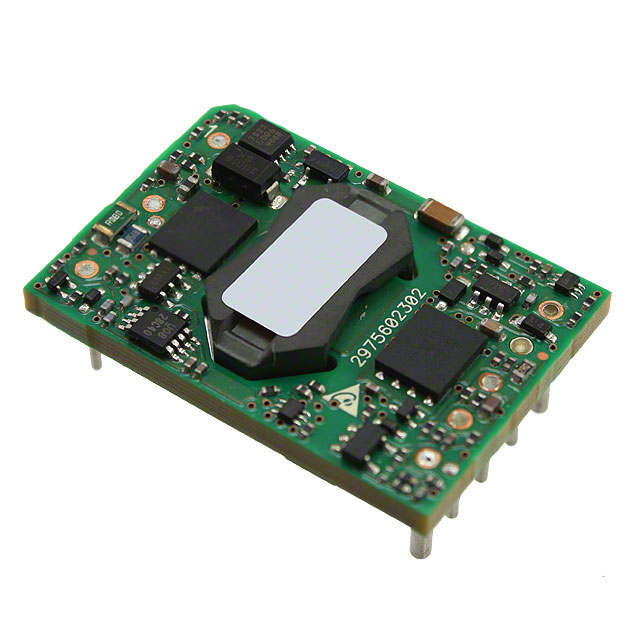

V36SE05010NRFA
ActiveDelta Electronics
DC-DC 36VIN 1-OUT 5V 10A 8-PIN 1/16-BRICK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V36SE05010NRFA
ActiveDelta Electronics
DC-DC 36VIN 1-OUT 5V 10A 8-PIN 1/16-BRICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V36SE05010NRFA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, UL, EN, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 91 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 119 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 9.4 mm |
| Size / Dimension [z] | 0.37 in |
| Standard Number | 60950-1, 62368-1 |
| Supplier Device Package | Sixteenth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
V36SE Series
Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input
