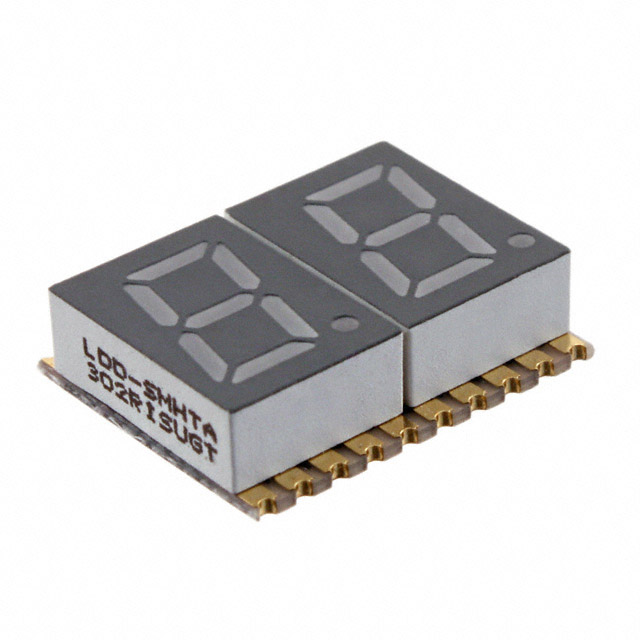

LDD-SMHTA302RISUGT
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.3" DBL GRN 20SMD
Deep-Dive with AI
Search across all available documentation for this part.
LDD-SMHTA302RISUGT
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.3" DBL GRN 20SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-SMHTA302RISUGT |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.3 in |
| Digit/Alpha Size | 7.62 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 2.5 mcd |
| Number of Characters | 2 |
| Package / Case | 20-SMD, No Lead |
| Power Dissipation (Max) | 65 mW |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 0.583 in |
| Size / Dimension [y] | 14.8 mm |
| Size / Dimension [z] | 0.157 " |
| Size / Dimension [z] | 4 mm |
| Voltage - Forward (Vf) (Typ) | 2.25 V |
| Wavelength - Peak | 568 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.73 | |
| Digi-Reel® | 1 | $ 3.73 | ||
| Tape & Reel (TR) | 2700 | $ 1.60 | ||
| 6300 | $ 1.57 | |||
Description
General part information
LDD-SMHTA302 Series
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.25V 20mA 0.394" H x 0.583" W x 0.157" D (10.00mm x 14.80mm x 4.00mm) 20-SMD, No Lead
