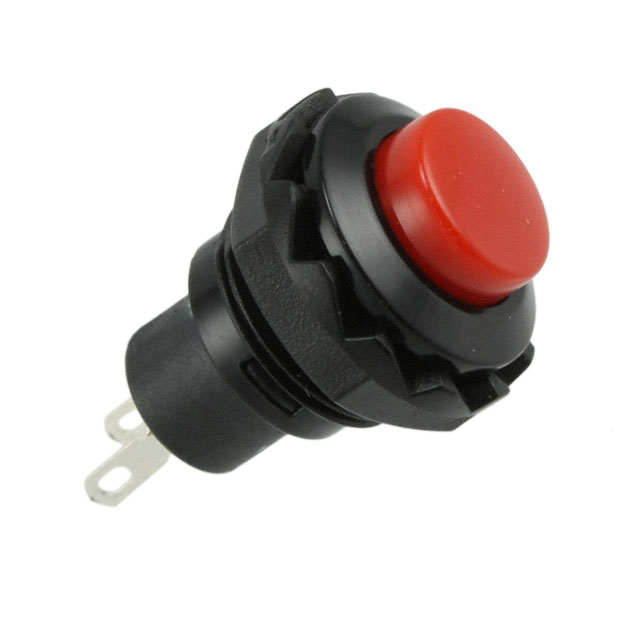

GPB502A05BR

Active

CW Industries

STRAIGHT SPST - NORMALLY OPEN 3A PUSHBUTTON SWITCHES ROHS

Search across all available documentation for this part.

Active

CW Industries

STRAIGHT SPST - NORMALLY OPEN 3A PUSHBUTTON SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	GPB502A05BR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Actuator Marking	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Termination Style	Type	Voltage Rating - AC	Circuit	Switch Function
CW Industries GPB502A05BR	No Marking	12.7 mm	Button Round	3 A	Panel Mount Front	Red	Solder Lug	Standard	125 V	SPST-NO	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
