1334A 0031000

Active

Belden Inc.

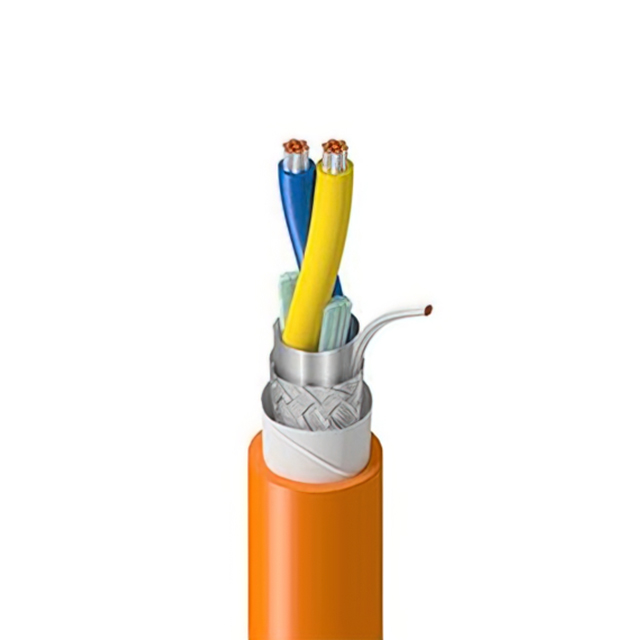

CABLE 2COND 18AWG ORG SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG ORG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1334A 0031000

Cable Type	Multi-Conductor
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.29 mm
Jacket (Insulation) Diameter [diameter]	0.287 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Voltage	Shield Type	Conductor Insulation	Jacket Color	Conductor Material	Jacket (Insulation) Material	Length	Length	Cable Type	Features	Shield Coverage	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1334A 0061000	Aluminum Copper Tinned	300 V	Braid Foil	Polyolefin (PO)	Blue	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Multi-Conductor	Drain Wire Rip Cord	65 % 100 %	2	18 AWG	26 AWG	7	7.29 mm	0.287 "	-30 ░C	90 °C
Belden Inc. 1334A 0031000	Aluminum Copper Tinned	300 V	Braid Foil	Polyolefin (PO)	Orange	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Multi-Conductor	Drain Wire Rip Cord	65 % 100 %	2	18 AWG	26 AWG	7	7.29 mm	0.287 "	-30 ░C	90 °C
Belden Inc. 1334A 0033280	Aluminum Copper Tinned	300 V	Braid Foil	Polyolefin (PO)	Orange	Copper Tinned	Poly-Vinyl Chloride (PVC)	3281 ft	1000 m	Multi-Conductor	Drain Wire Rip Cord	65 % 100 %	2	18 AWG	26 AWG	7	7.29 mm	0.287 "	-30 ░C	90 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.58

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Orange 18 AWG Foil, Braid 1000.0' (304.8m)
