SP24M1F

Obsolete

Amphenol Sine Systems Corp

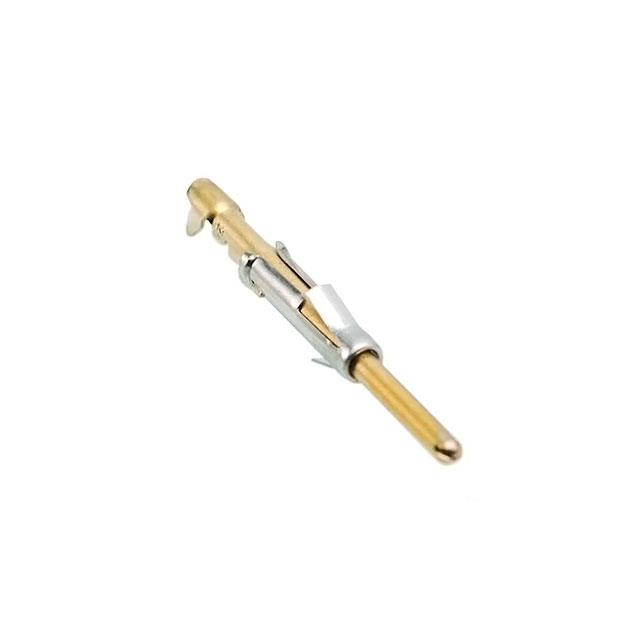

CONTACT PIN 24-26AWG CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SP24M1F

Obsolete

Amphenol Sine Systems Corp

CONTACT PIN 24-26AWG CRIMP GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SP24M1F

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Size	16
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Termination Finish	Copper Alloy
Type	Stamped, Signal
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	24 AWG
Wire Gauge or Range - mm² [Max]	0.25 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

SP24 Series

Part	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Contact Material	Contact Finish Thickness	Contact Size	Termination Finish	Contact Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Amphenol Sine Systems Corp SP24M1F	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy	Flash	16	Copper Alloy	Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin
Amphenol Sine Systems Corp SP24W2G5	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		20		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.127 µm	5 µin
Amphenol Sine Systems Corp SP24W2G15	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		20		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.38 µm	15 µin
Amphenol Sine Systems Corp SP24M2G5	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		16		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.127 µm	5 µin
Amphenol Sine Systems Corp SP24W1F	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy	Flash	20		Gold			Insulation Support	Pin			0.25 mm˛	0.14 mm˛
Amphenol Sine Systems Corp SP24M1G5	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		16		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.127 µm	5 µin
Amphenol Sine Systems Corp SP24M2G10	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		16		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.25 Ám	10 Áin
Amphenol Sine Systems Corp SP24M2T	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		16		Tin	0.14 mm²	0.25 mm²	Insulation Support	Pin
Amphenol Sine Systems Corp SP24W1G30	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		20		Gold	0.14 mm²	0.25 mm²	Insulation Support	Pin	0.76 Ám	30 Áin
Amphenol Sine Systems Corp SP24M1N	Signal Stamped	24 AWG	26 AWG	Crimp	Copper Alloy		16		Nickel	0.14 mm²	0.25 mm²	Insulation Support	Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SP24 Series

Pin Contact 24-26 AWG Size 16 Crimp Gold
