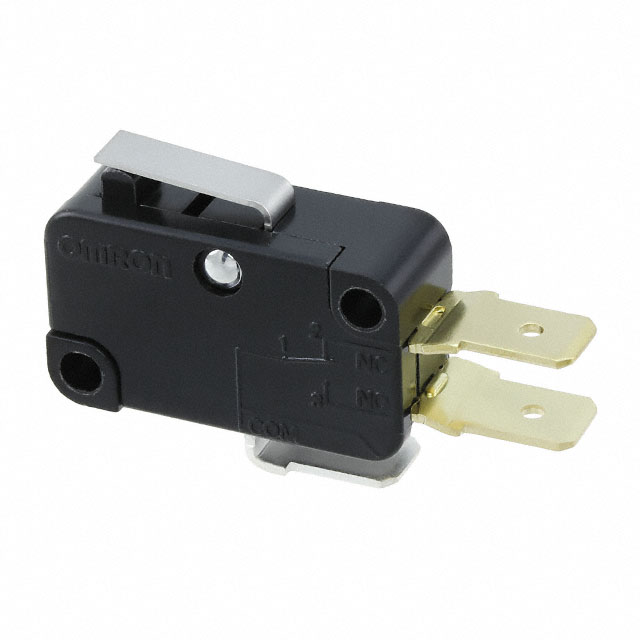

V-151-1C5

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Current Rating (Amps)	Ingress Protection	Circuit	Actuator Type	Mounting Type	Electrical Life	Operating Position	Operating Position	Operating Force	Differential Travel	Differential Travel	Termination Style	Termination Style	Voltage Rating - AC	Voltage Rating - DC
Omron Electronics Inc-EMC Div V-151-3A6	0.063 in	1.6 mm	50 gf	0.76 mm	0.03 in	Off-Mom	-25 °C	80 C	50000000 Cycles	15 A 600 mA	IP40	SPST-NO	Lever Straight	Chassis Mount	100000 Cycles	0.6 in	15.2 mm	400 gf	0.6 mm	0.025 in	Quick Connect Solder	0.187 in 4.7 mm	250 V	125 VDC
Omron Electronics Inc-EMC Div V-151-2A5	0.063 in	1.6 mm	50 gf	0.76 mm	0.03 in	On-Mom	-25 °C	80 C	50000000 Cycles	15 A 600 mA	IP40	SPST-NC	Lever Straight	Chassis Mount	100000 Cycles	0.6 in	15.2 mm	200 gf	0.6 mm	0.025 in	Quick Connect Solder	0.187 in 4.7 mm	250 V	125 VDC
Omron Electronics Inc-EMC Div V-151-1C5	0.063 in	1.6 mm	50 gf	0.76 mm	0.03 in	On-Mom	-25 °C	80 C	50000000 Cycles	15 A 600 mA	IP40	SPDT	Lever Straight	Chassis Mount	100000 Cycles	0.6 in	15.2 mm	200 gf	0.6 mm	0.025 in	Quick Connect - 0.250" (6.3mm)		250 V	125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.26
