09140122632

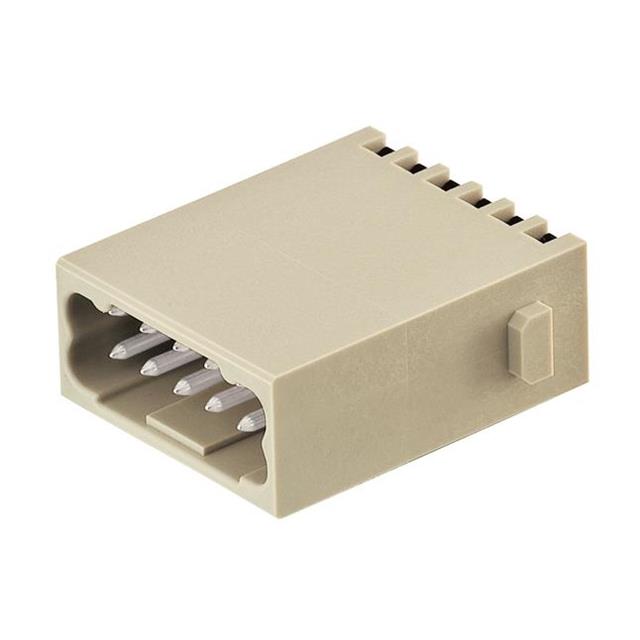

ActiveHEAVY DUTY CONNECTOR, 12+PE, HAN-QUICK LOCK®, HAN-MODULAR DD SERIES, MODULE, 13 CONTACTS, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09140122632
ActiveHEAVY DUTY CONNECTOR, 12+PE, HAN-QUICK LOCK®, HAN-MODULAR DD SERIES, MODULE, 13 CONTACTS, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140122632 |
|---|---|
| Color | Gray |
| Connector Type | Module |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Push In with Lock |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09140122 Series
The 09140122632 is a 12-position 2-row rectangular Han DD Quick-Lock Male Module, black slide, 0.25 to 1.5mm² wire cross section area with Han-Quick Lock® termination. Polycarbonate insert material with copper alloy contacts and silver plated surface contacts. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. In addition to connections of electrical power and signals it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system.
