0191340008

Active

Molex

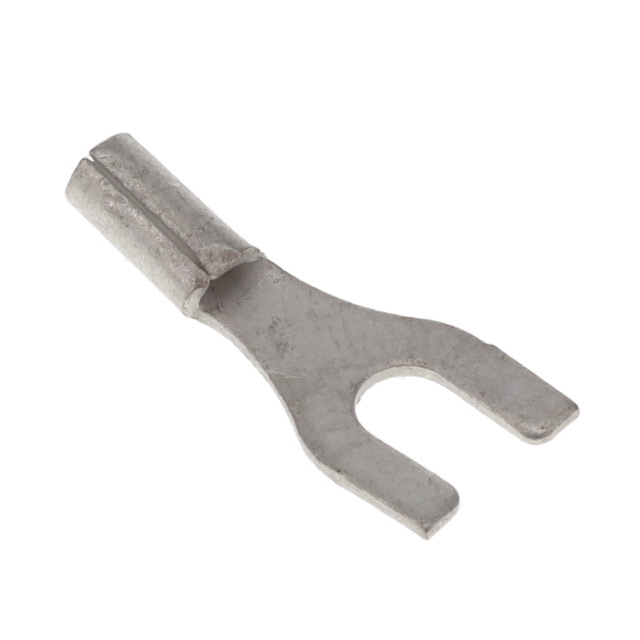

CONN SPADE TERM 18-22AWG #6

Search across all available documentation for this part.

Active

Molex

CONN SPADE TERM 18-22AWG #6

Technical Specifications

Parameters and characteristics for this part

Specification	0191340008

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall [x]	19.77 mm
Length - Overall [x]	0.778 "
Length - Ring Center to Termination [x]	7.7 mm
Length - Ring Center to Termination [x]	0.303 in
Length - Termination [custom]	0.245 in
Length - Termination [custom]	6.22 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [y]	8.03 mm
Width - Outer Edges [y]	0.316 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Stud/Tab Size	Features	Contact Finish	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Length - Termination [custom]	Length - Termination [custom]
Molex 0191340008	7.7 mm	0.303 in	Copper	Free Hanging (In-Line)	8.03 mm	0.316 in	Standard	3.71 mm	0.146 in	Non-Insulated	6 Stud	Brazed Seam	Electro-Tin	19.77 mm	0.778 "	22 AWG	17.5 AWG	Crimp	0.245 in	6.22 mm
Molex 0191340010	7.7 mm	0.303 in	Copper	Free Hanging (In-Line)	8.03 mm	0.316 in	Standard	5.03 mm	0.198 in	Non-Insulated	10 Stud	Brazed Seam	Electro-Tin	19.77 mm	0.778 "	22 AWG	17.5 AWG	Crimp	0.245 in	6.22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Stud Spade Terminal Connector Crimp 18-22 AWG
