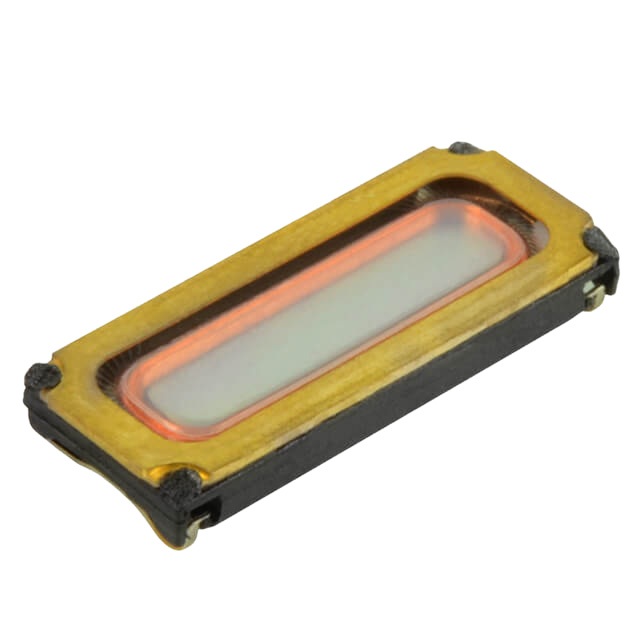

CMR-15062S-67

Active

CUI Devices

SPEAKR 32OHM 20MW TOP PORT 117DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKR 32OHM 20MW TOP PORT 117DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMR-15062S-67

Efficiency - dBA	117 dBA
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range [Max]	7 kHz
Frequency Range [Min]	300 Hz
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Impedance	32 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	30 mW
Power - Rated	20 mW
Shape	Rectangular
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Technology	Magnetic
Termination	Spring Type
Type	Receiver

Part	Type	Power - Max [Max]	Termination	Efficiency - Type	Material - Magnet	Material - Cone	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Port Location	Ingress Protection	Frequency Range [Max]	Frequency Range [Min]	Impedance	Frequency - Self Resonant	Technology	Shape	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power - Rated	Efficiency - dBA
CUI Devices CMR-15062S-67	Receiver	30 mW	Spring Type	Sound Pressure Level (SPL)	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	0.236 in	0.591 in	15 mm	6 mm	Top	IP67 - Dust Tight Waterproof	7 kHz	300 Hz	32 Ohms	550 Hz	Magnetic	Rectangular	2 mm	0.079 in	20 mW	117 dBA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Ohms Receiver Speaker 20 mW 300 Hz ~ 7 kHz Top Rectangular
