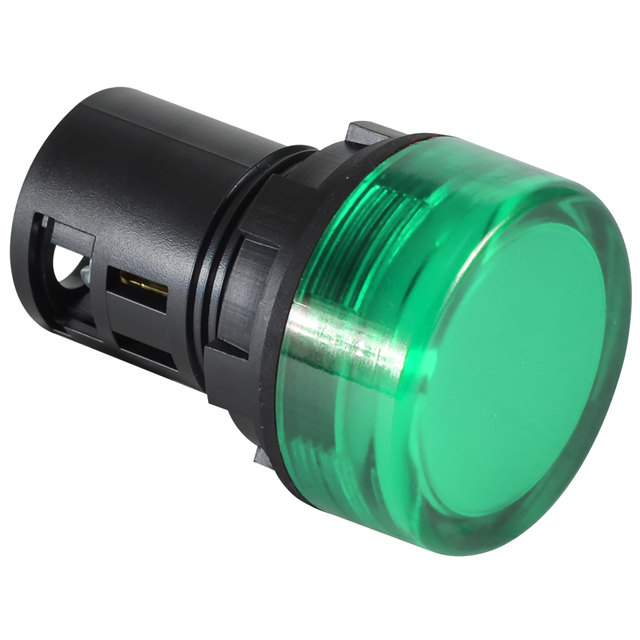

W22UNR-24LG-WLG

Active

c3controls

22MM UBDY 24V GN NR LED/EXTLENS

Search across all available documentation for this part.

Active

c3controls

22MM UBDY 24V GN NR LED/EXTLENS

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Millicandela Rating	Current	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lamp Color	Panel Cutout Shape	Voltage	Ingress Protection	Ratings
c3controls W22UNR-24LG-WLG	Green	2000 mcd	21 mA	Quick Connect	0.88 in	22.23 mm	LED	Green	Round	24 V	IP66 IP67	AC/DC
c3controls W22UNR-24LR-WNLR	Red	2000 mcd	21 mA	Quick Connect	0.88 in	22.23 mm	LED	Red	Round	24 V	IP66 IP67	AC/DC
c3controls W22UNR-120LR-WLR	Red	2000 mcd	3.5 mA	Quick Connect	0.88 in	22.23 mm	LED	Red	Round		IP66 IP67	AC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.56

General part information

LED Panel Indicator Green 24V 21mA Quick Connect

Technical documentation and resources

No documents available
