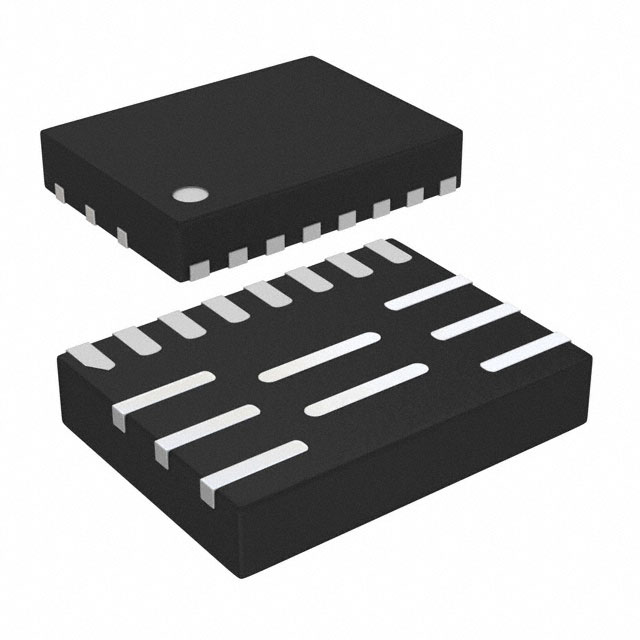

MPQ8632GLE-12-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 12A 16QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPQ8632GLE-12-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 12A 16QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ8632GLE-12-Z

Current - Output	12 A
Frequency - Switching [Max]	1 MHz
Frequency - Switching [Min]	200 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	16-PowerVFQFN
Supplier Device Package	16-QFN (3x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output (Max) [Max]	13 V
Voltage - Output (Min/Fixed)	0.611 V

MPQ8632 Series

Part	Number of Outputs	Current - Output	Voltage - Output (Max) [Max]	Topology	Mounting Type	Output Configuration	Output Type	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GLE-10-P	1	10 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	16-PowerVFQFN	16-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GLE-4-Z	1	4 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	16-PowerVFQFN	16-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GLE-4-P	1	4 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	16-PowerVFQFN	16-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GL-12-Z	1	12 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	2.5 V	18 V	0.611 V	1 MHz	200 kHz	13-VFQFN	13-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GL-8-P	1	8 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	2.5 V	18 V	0.611 V	1 MHz	200 kHz	13-VFQFN	13-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GL-12-P	1	12 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	2.5 V	18 V	0.611 V	1 MHz	200 kHz	13-VFQFN	13-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GVE-20-Z	1	20 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	29-VFQFN Exposed Pad	29-QFN (5x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632DGLE-12-P	1	12 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	16-PowerVFQFN	16-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GLE-12-Z	1	12 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	4.5 V	18 V	0.611 V	1 MHz	200 kHz	16-PowerVFQFN	16-QFN (3x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ8632GL-10-Z	1	10 A	13 V	Buck	Surface Mount	Positive	Adjustable	Step-Down	-40 °C	125 ¯C	2.5 V	18 V	0.611 V	1 MHz	200 kHz	13-VFQFN	13-QFN (3x4)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.35
		10	$ 4.81
		25	$ 4.54
		100	$ 3.94
		250	$ 3.74
		500	$ 3.35
		1000	$ 2.83
		2500	$ 2.69
	Digi-Reel®	1	$ 5.35
		10	$ 4.81
		25	$ 4.54
		100	$ 3.94
		250	$ 3.74
		500	$ 3.35
		1000	$ 2.83
		2500	$ 2.69
	Tape & Reel (TR)	5000	$ 2.59

Description

General part information

MPQ8632 Series

Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 12A 16-PowerVFQFN

Documents

Technical documentation and resources
