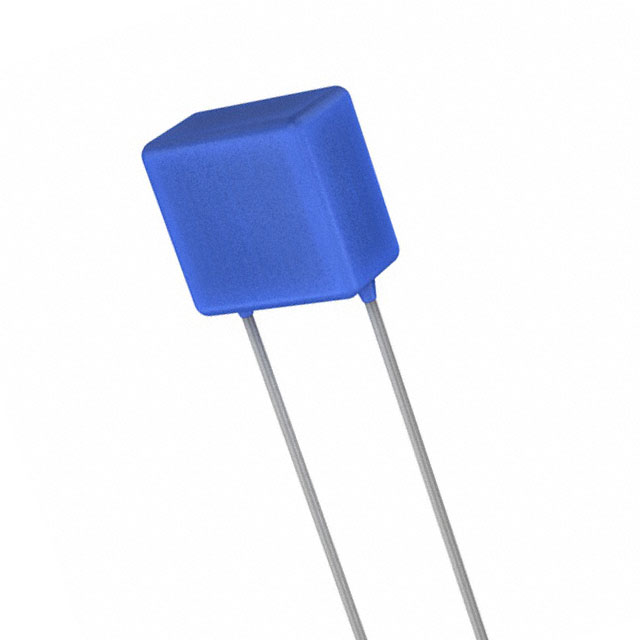

20HV13B103MN

Active

KEMET

CAP CER 10000PF 2KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 2KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	20HV13B103MN

Applications	Downhole
Capacitance	10000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lead Spacing	10.16 mm
Lead Spacing	0.4 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.52 in
Size / Dimension [x]	13.21 mm
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Temperature Coefficient	X7R
Tolerance	20 %
Voltage - Rated	2 kV
Voltage - Rated	2000 V

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Features	Package / Case	Lead Style	Tolerance [Max]	Tolerance [Min]
KEMET 20HV13B103MN	Through Hole	12.7 mm	0.5 in	-55 °C	200 °C	20 %	2 kV	2000 V	X7R	10000 pF	10.16 mm	0.4 in	0.52 in	7.62 mm	13.21 mm	0.3 "	Downhole	High Temperature High Voltage	Radial	Straight
KEMET 20HV13B103PN	Through Hole	12.7 mm	0.5 in	-55 °C	200 °C		2 kV	2000 V	X7R	10000 pF	10.16 mm	0.4 in	0.52 in	7.62 mm	13.21 mm	0.3 "	Downhole	High Temperature High Voltage	Radial	Straight	100 %	0 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF ±20% 2000V (2kV) Ceramic Capacitor X7R Radial
