SCBSST-16-01

Active

Essentra Access Solutions

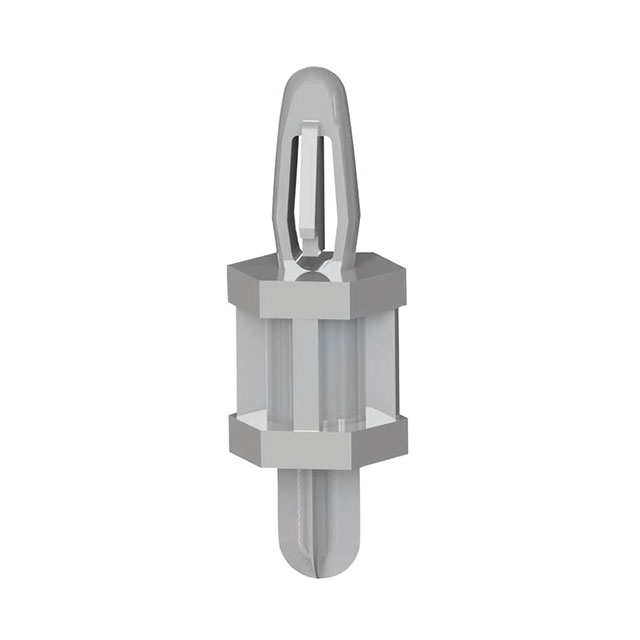

BRD SPT SNAP LOCK THR STUD 1"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK THR STUD 1"

Technical Specifications

Parameters and characteristics for this part

Specification	SCBSST-16-01

Between Board Height	1 in
Between Board Height	25.4 mm
Features	M4 Thread
Holding Type	Snap Lock
Length - Overall [x]	1.653 in
Length - Overall [x]	42 mm
Material	Nylon
Mounting Panel Thickness	0.063 in
Mounting Panel Thickness	1.6 mm
Mounting Type	Threaded Stud
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Material	Mounting Type	Holding Type	Length - Overall	Length - Overall	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Features	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions SCBSST-10-01	0.0625 "	0.062 "	1.57 mm	0.063 in	1.6 mm	Nylon	Threaded Stud	Snap Lock	32.5 mm	1.28 in	0.157 "	3.99 mm	15.88 mm	0.625 in	0.625 in	M4 Thread
Essentra Access Solutions SCBSST-8-01	0.0625 "	0.062 "	1.57 mm	0.063 in	1.6 mm	Nylon	Threaded Stud	Snap Lock			0.157 "	3.99 mm	12.7 mm	0.5 in	0.5 in	M4 Thread	29.3 mm	1.154 in
Essentra Access Solutions SCBSST-16-01	0.0625 "	0.062 "	1.57 mm	0.063 in	1.6 mm	Nylon	Threaded Stud	Snap Lock			0.157 "	3.99 mm	25.4 mm	1 in		M4 Thread	42 mm	1.653 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Threaded Stud Nylon 1.000" (25.40mm) 1"
