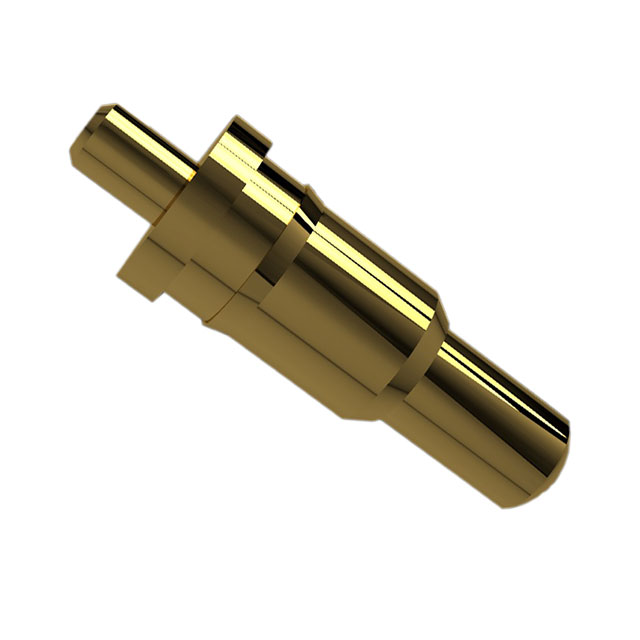

90158-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90158-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90158-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 0.177 in |
| Maximum Working Height [Max] | 4.5 mm |
| Minimum Working Height [Min] | 3.1 mm |
| Minimum Working Height [Min] | 0.122 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 25.49 gf |
| Operating Force - Mid Compression | 61.18 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.83 mm |
| Pad Layout Dimension [diameter] | 0.072 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.79 | |||
| 100 | $ 0.71 | |||
| 1000 | $ 0.51 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.43 | |||
Description
General part information
90158 Series
Contact Spring Through Hole
