0034.1524.PT

Active

SCHURTER Inc.

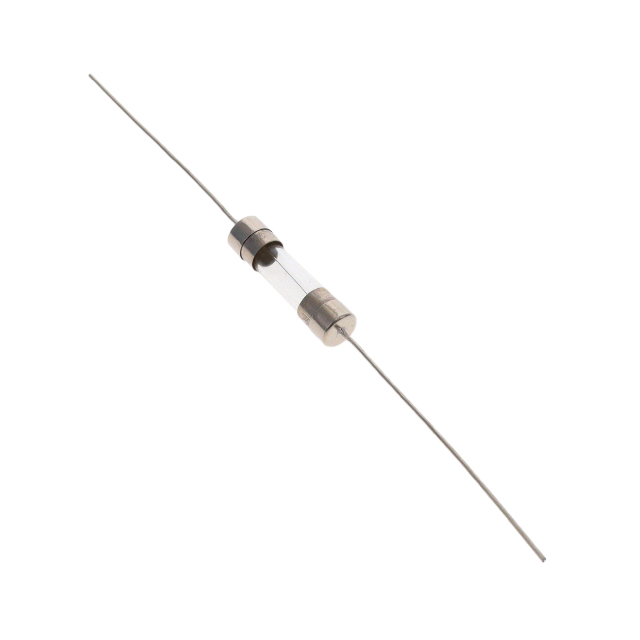

FUSE GLASS 6.3A 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE GLASS 6.3A 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.1524.PT

Breaking Capacity @ Rated Voltage	63 A
Current Rating (Amps)	6.3 A
Melting I²t	53.2
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Breaking Capacity @ Rated Voltage	Response Time	Voltage Rating - AC	Current Rating (Amps)	Melting I²t	Package / Case [x]	Package / Case [y]
SCHURTER Inc. 0034.1524.PT	0.886 "	22.5 mm	5.4 mm	0.213 in	-55 °C	125 °C	Through Hole	63 A	Fast Blow	250 V	6.3 A	53.2	5 mm	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.3 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
