C0781A.41.10

Active

Prysmian Group

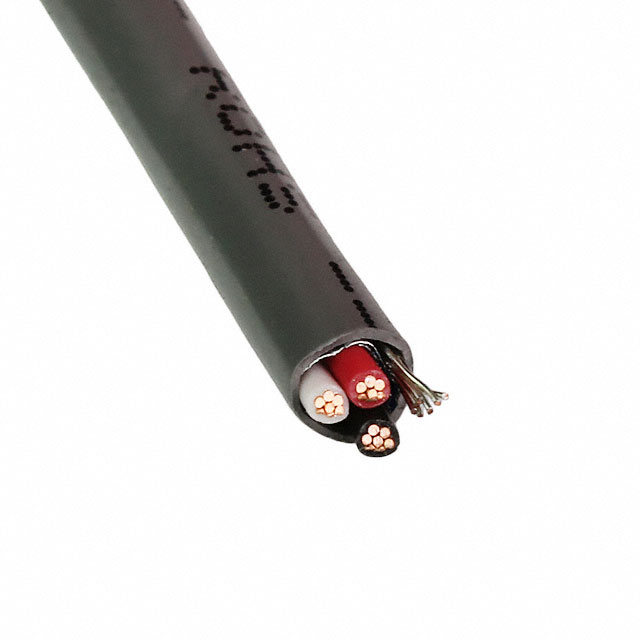

CABLE 3COND 20AWG GRAY SHLD 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 20AWG GRAY SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C0781A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.51 mm
Jacket (Insulation) Diameter [diameter]	0.217 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Ratings	Shield Material	Jacket (Insulation) Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Wire Gauge	Shield Type	Length [x]	Conductor Insulation	Voltage	Usage	Jacket Color	Shield Coverage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material
Prysmian Group C0781A.41.10	1000 ft	15.24 m 304.8 m	ASTM B-33	Flexfoil®	Poly-Vinyl Chloride (PVC)	Drain Wire	-20 C	80 C	5.51 mm	0.217 in	3	20 AWG	Foil	50 ft	Poly-Vinyl Chloride (PVC)	300 V	Computer	Gray	100 %	Multi-Conductor	28	7	Copper Annealed Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
