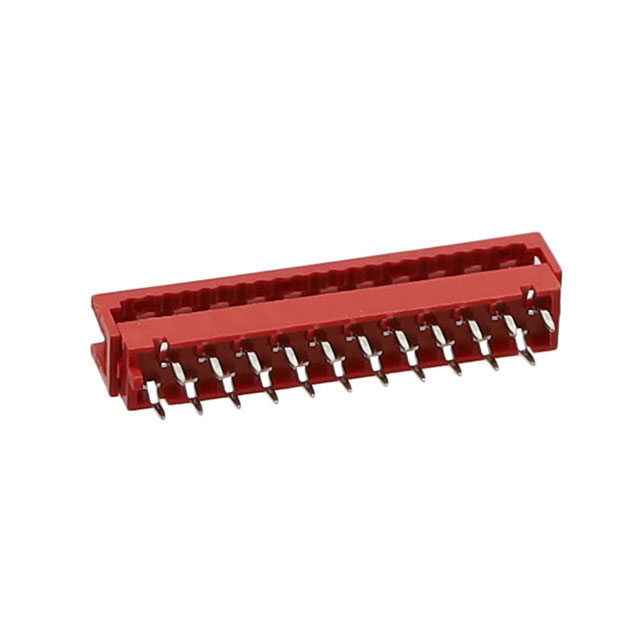

3550-22-0101-99
ActiveCnC Tech, LLC
CONN DIP 22 POS PLG IDC PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3550-22-0101-99
ActiveCnC Tech, LLC
CONN DIP 22 POS PLG IDC PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3550-22-0101-99 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Press-Fit |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.80 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.65 | |||
| 40 | $ 0.64 | |||
| 80 | $ 0.61 | |||
| 230 | $ 0.55 | |||
| 440 | $ 0.50 | |||
| 960 | $ 0.49 | |||
Description
General part information
3550-22 Series
Position Ribbon Cable, DIP Header Connector IDC Through Hole, Press-Fit
