1550 WN005

Active

ALPHA WIRE

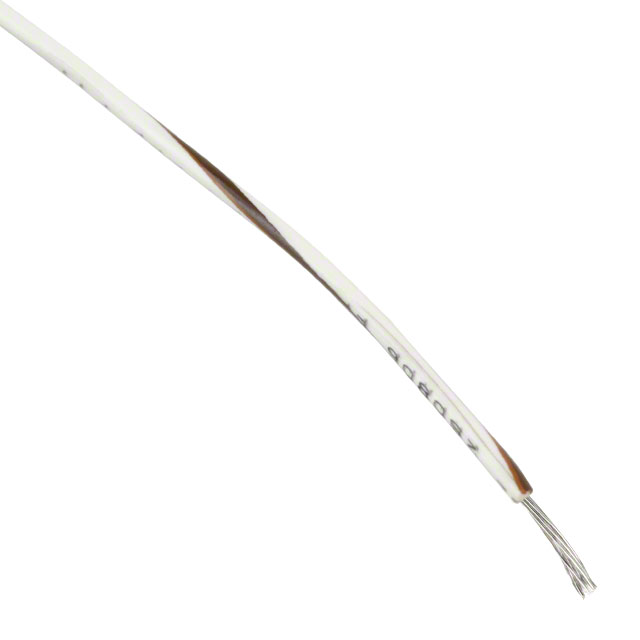

HOOK-UP STRND 24AWG WHITE/BROWN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

1550 WN005

Active

ALPHA WIRE

HOOK-UP STRND 24AWG WHITE/BROWN

Deep-Dive with AI

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1550 WN005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	1.42 mm
Jacket (Insulation) Diameter [diameter]	0.056 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	White, Brown Stripe
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	24 AWG

1550 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Qualification	Wire Gauge	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
ALPHA WIRE 1550 WV001	32 AWG	7	White Violet Stripe	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in	1000 ft	304.8 m	MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm
ALPHA WIRE 1550 WN005	32 AWG	7	White Brown Stripe	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1550 RD005	32 AWG	7	Red	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1550 SL005	32 AWG	7	Slate	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1550 WV005	32 AWG	7	White Violet Stripe	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1550 WG005	32 AWG	7		-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1550 VI001	32 AWG	7	Violet	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in	1000 ft	304.8 m	MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm
ALPHA WIRE 1550 WG001	32 AWG	7		-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in	1000 ft	304.8 m	MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm
ALPHA WIRE 1550 WN001	32 AWG	7	White Brown Stripe	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in	1000 ft	304.8 m	MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm
ALPHA WIRE 1550 GR005	32 AWG	7	Green	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	1.42 mm	0.056 in			MIL-W-76B Type MW	24 AWG	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.33

Description

General part information

1550 Series

24 AWG Hook-Up Wire 7/32 White, Brown Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
