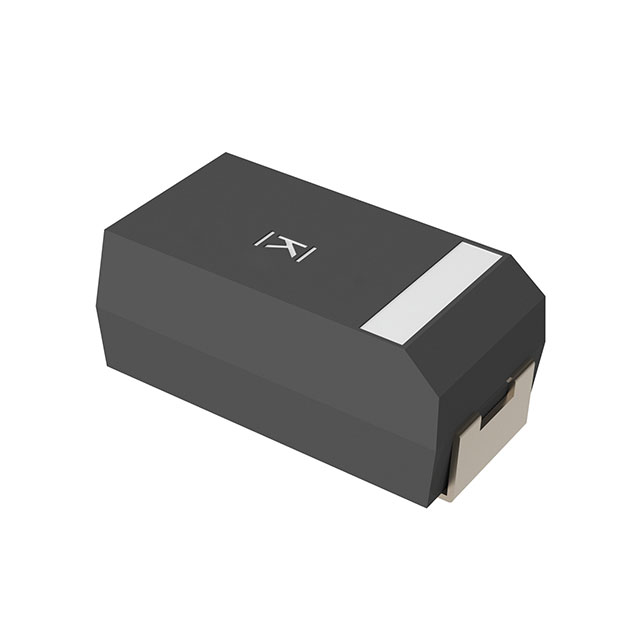

T591V227M2R5ATE012

Active

KEMET

CAP TANT POLY 220UF 2.5V 2917

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 220UF 2.5V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	T591V227M2R5ATE012

Capacitance	220 µF
ESR (Equivalent Series Resistance)	12 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V

Part	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Package / Case	Type	Lifetime @ Temp.	Manufacturer Size Code	Tolerance	Features	Capacitance
KEMET T591V157M006ATE025	25 mOhm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	2 mm	0.079 in	-55 °C	125 °C	Surface Mount	7343 Metric	2917	Molded	2000 Hrs	V	20 %	General Purpose	150 µF
KEMET T591V106M035ATE120	120 mOhm	4.3 mm	0.287 "	7.3 mm	0.169 "	35 V	2 mm	0.079 in	-55 °C	125 °C	Surface Mount	7343 Metric	2917	Molded	2000 Hrs	V	20 %	General Purpose	10 µF
KEMET T591V227M004ATE018	18 mOhm	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	2 mm	0.079 in	-55 °C	105 ░C	Surface Mount	7343 Metric	2917	Molded	2000 Hrs	D	20 %	General Purpose	220 µF
KEMET T591V227M2R5ATE012	12 mOhm	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	2 mm	0.079 in	-55 °C	105 ░C	Surface Mount	7343 Metric	2917	Molded	2000 Hrs	D	20 %	General Purpose	220 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.19
Newark	Each (Supplied on Cut Tape)	500	$ 1.57

General part information

220 µF Molded Tantalum Polymer Capacitor 2.5 V 2917 (7343 Metric) 12mOhm @ 100kHz
