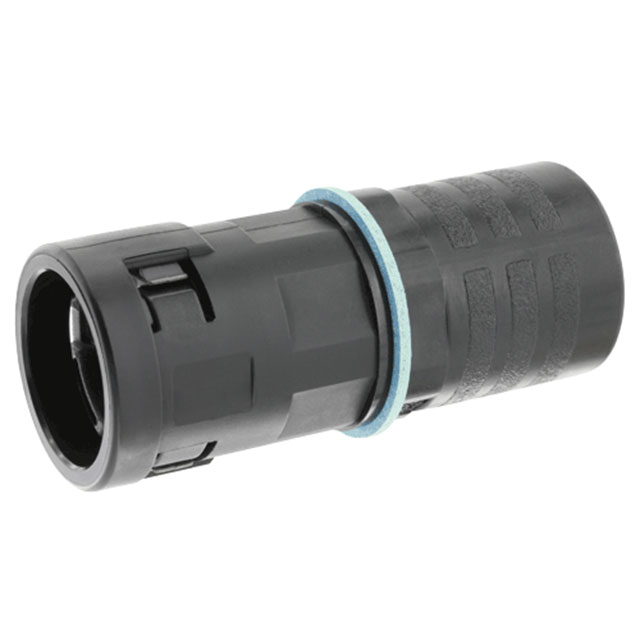

CL101041

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ1 BLACK PG13.5

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ1 BLACK PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	CL101041

Cable Exit	180 °
Cable Opening [custom]	0.67 in
Cable Opening [custom]	17.02 mm
Color	Black
Features	Gasket
For Use With/Related Products	Flexible Conduit Systems
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Shell Size - Insert	1
Thread Size	PG13.5
Type	Backshell

Part	Shell Size - Insert	Thread Size	Features	Material Flammability Rating	Color	Type	Cable Exit	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Material	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Accessory Type
Souriau-Sunbank by Eaton CL101041	1	PG13.5	Gasket	UL94 V-0	Black	Backshell	180 °	Flexible Conduit Systems	0.67 in	17.02 mm	Thermoplastic	IP67 - Dust Tight Waterproof
Souriau-Sunbank by Eaton CL101051	1	PG13.5	Sealing Gland	UL94 V-0	Black	Backshell	90 °	Clipper Sealed Connectors			Thermoplastic	IP67 - Dust Tight Waterproof	0.47 in	11.94 mm	6.1 mm	0.24 in
Souriau-Sunbank by Eaton CL101040	1	PG13.5	Gasket	UL94 V-0	Black	Backshell	180 °	Flexible Conduit Systems	0.67 in	17.02 mm	Thermoplastic	IP40
Souriau-Sunbank by Eaton CL101000	1		Unsealed					Commercial Backshell									PG Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.51

General part information

Black Connector Backshell PG13.5 1
