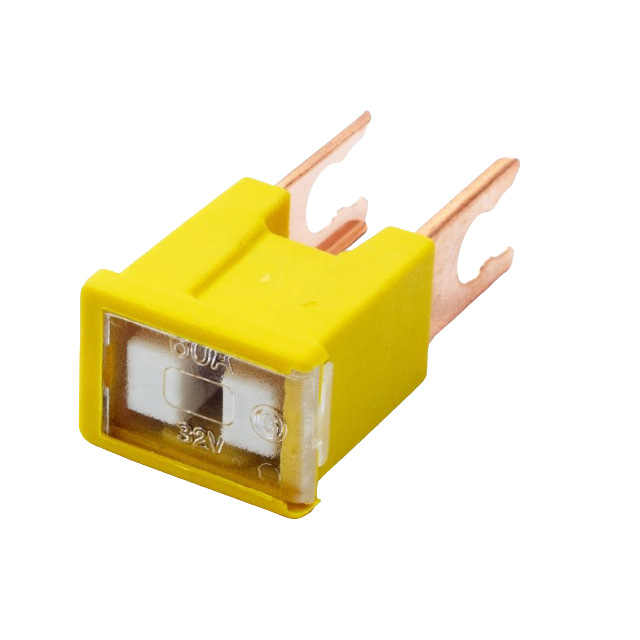

TFLM-60A

Active

OptiFuse

FUSE AUTO 60A 32VAC 32VDC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 60A 32VAC 32VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TFLM-60A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Yellow
Current Rating (Amps)	60 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Auto Link
Response Time	Fast Blow
Size / Dimension [x]	0.906 in
Size / Dimension [x]	23 mm
Size / Dimension [y]	0.642 in, 16.3 mm
Size / Dimension [z]	0.996 "
Voltage Rating - AC	32 V
Voltage Rating - DC	32 V

Part	Color	Breaking Capacity @ Rated Voltage	Mounting Type	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Approval Agency	Package / Case	Voltage Rating - AC	Fuse Type	Response Time
OptiFuse TFLM-40A	Green	1 kA	Requires Holder	40 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow
OptiFuse TFLM-120A	White	1 kA	Requires Holder	120 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow
OptiFuse TFLM-60A	Yellow	1 kA	Requires Holder	60 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow
OptiFuse TFLM-50A	Red	1 kA	Requires Holder	50 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow
OptiFuse TFLM-100A	Blue	1 kA	Requires Holder	100 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow
OptiFuse TFLM-30A	Pink	1 kA	Requires Holder	30 A	0.996 "	0.906 in	0.642 in 16.3 mm	23 mm	32 V	ISO SAE	Auto Link	32 V	Automotive	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 A 32 V AC 32 V DC Fuse Automotive Requires Holder Auto Link
