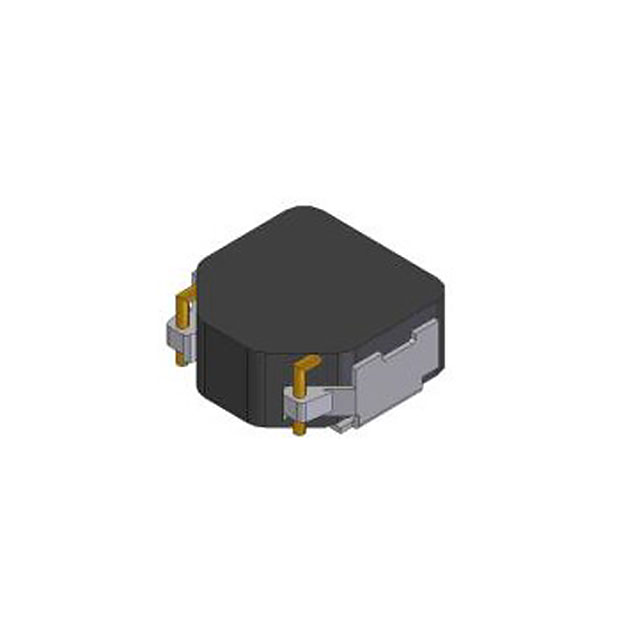

DFEG7030D-220M=P3
NRNDMurata Power Solutions Inc.
FIXED IND 22UH 1.9A 198MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFEG7030D-220M=P3
NRNDMurata Power Solutions Inc.
FIXED IND 22UH 1.9A 198MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFEG7030D-220M=P3 |
|---|---|
| Current - Saturation (Isat) | 2.7 A |
| Current Rating (Amps) | 1.9 A |
| DC Resistance (DCR) [Max] | 198 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [y] | 6.6 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.51 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.09 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.79 | |||
| Digi-Reel® | 1 | $ 1.51 | ||
| 10 | $ 1.27 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.09 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.79 | |||
| Tape & Reel (TR) | 1000 | $ 0.67 | ||
| 2000 | $ 0.62 | |||
| 3000 | $ 0.59 | |||
| 5000 | $ 0.56 | |||
Description
General part information
DFEG7030D Series
22 µH Shielded Inductor 1.9 A 198mOhm Max Nonstandard
