010632WF068

Active

Essentra Access Solutions

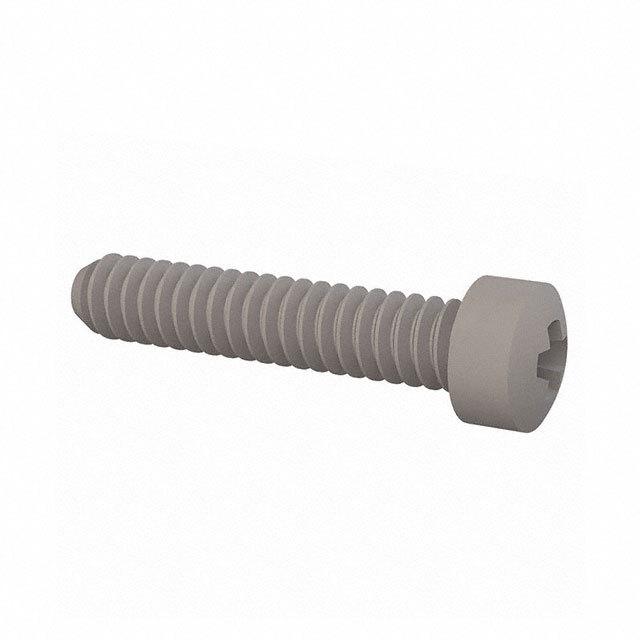

FILLISTER PHILLIPS SCREW 6-32

Search across all available documentation for this part.

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW 6-32

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head	Length - Below Head	Length - Below Head	Type	Head Height	Head Height	Screw Head Type	Material	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
Essentra Access Solutions 010632WF025	6.35 mm	0.25 in	0.25 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.493 in	12.52 mm	Phillips
Essentra Access Solutions 010632WF062	15.88 mm	0.625 in	0.625 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.868 in	22.05 mm	Phillips
Essentra Access Solutions 010632WF200				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips	50.8 mm	2 in
Essentra Access Solutions 010632WF015				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.399 in	10.14 mm	Phillips
Essentra Access Solutions 010632WF087	0.875 in		22.23 mm	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	1.118 in	28.4 mm	Phillips		0.875 in
Essentra Access Solutions 010632WF018				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips	4.76 mm	0.188 in
Essentra Access Solutions 010632WF068	17.46 mm			Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips		0.688 "
Essentra Access Solutions 010632WF009				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips
Essentra Access Solutions 010632WF050	12.7 mm	0.5 in		Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.743 in	18.87 mm	Phillips			1/2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

#6-32 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
