5530113200F

Active

DIALIGHT

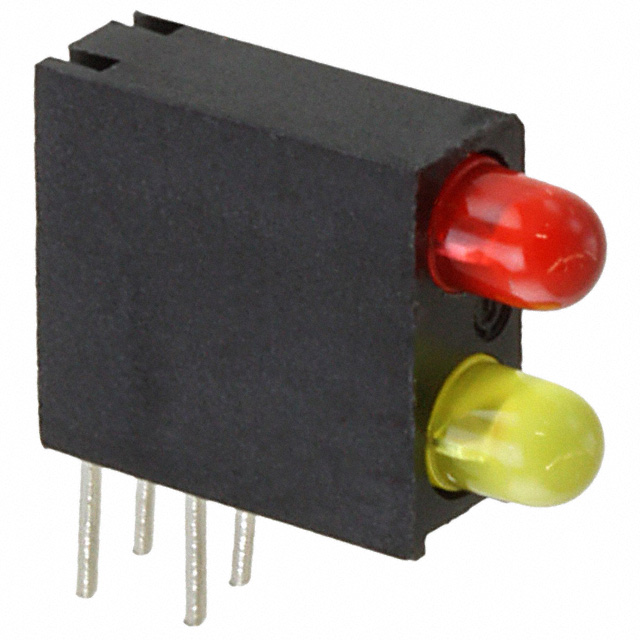

LED CBI 3MM BI-LVL RED/YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530113200F

Active

DIALIGHT

LED CBI 3MM BI-LVL RED/YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530113200F

Color	Red, Yellow
Configuration	2 High
Current	10 mA
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	45 °
Voltage Rating	2.1V Yellow, 2V Red
Wavelength - Peak	635 nm, 585 nm

5530113 Series

Part	Lens Size	Lens Size	Mounting Type	Lens Style	Viewing Angle	Lens Type	Voltage Rating	Millicandela Rating	Current	Wavelength - Peak	Color	Configuration
DIALIGHT 5530113802F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top
DIALIGHT 5530113803F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top
DIALIGHT 5530113410F			Through Hole Right Angle		60 °	Diffused Tinted	2.1V Yellow 2V Red	10 mcd	10 mA	585 nm 635 nm	Red Yellow
DIALIGHT 5530113200F			Through Hole Right Angle		45 °	Diffused Tinted	2.1V Yellow 2V Red	10 mcd	10 mA	585 nm 635 nm	Red Yellow	2 High
DIALIGHT 5530113F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	45 °	Diffused Tinted	2.1V Yellow 2V Red	10 mcd	10 mA	585 nm 635 nm	Red Yellow	2 High

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.48
		10	$ 1.62
		100	$ 1.18
		500	$ 1.01
		1000	$ 0.96
		2000	$ 0.91
		5000	$ 0.87
		10000	$ 0.84

Description

General part information

5530113 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 1), Yellow (x 1) Diffused, Tinted 2V Red, 2.1V Yellow 10mA Through Hole, Right Angle
