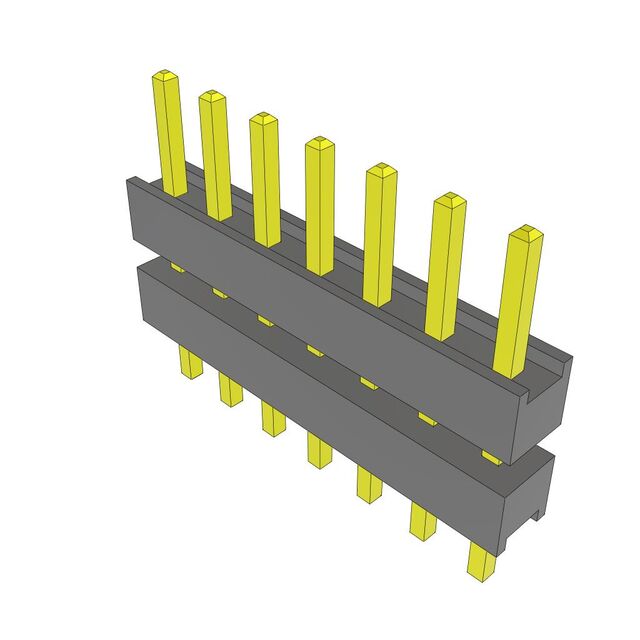

ZW-07-08-G-S-250-115

Active

Samtec Inc.

CONN BOARD STACKER HDR 7 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch ZW Datasheet +1

ZW-07-08-G-S-250-115

Active

Samtec Inc.

CONN BOARD STACKER HDR 7 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch ZW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-07-08-G-S-250-115

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	0.53 in
Length - Overall Pin	13.462 mm
Length - Post (Mating) [x]	0.165 in
Length - Post (Mating) [x]	4.191 mm
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Length - Tail [x]	0.115 in
Length - Tail [x]	2.921 mm
Mounting Type	Through Hole
Number of Positions	7
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

ZW-07-08 Series

Part	Color	Length - Overall Pin	Length - Overall Pin	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Number of Rows	Number of Positions	Contact Finish - Post (Mating)	Mounting Type	Termination	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Length - Tail [custom]	Length - Tail [custom]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. ZW-07-08-S-D-239-086	Black	0.53 in	13.462 mm	30 µin	0.76 µm	0.1 in	2.54 mm	2	14	Gold	Through Hole	Solder	0.086 in	2.184 mm	6.071 mm	0.239 in	5.207 mm	0.205 in	2.54 mm	0.1 in
Samtec Inc. ZW-07-08-G-S-338-095	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám			1	7	Gold	Through Hole	Solder			8.585 mm	0.338 in	2.464 mm	0.097 in	2.54 mm	0.1 in	2.413 mm	0.095 in
Samtec Inc. ZW-07-08-T-S-250-125	Black	0.53 in	13.462 mm					1	7	Tin	Through Hole	Solder			6.35 mm	0.25 in	3.937 mm	0.155 in	2.54 mm	0.1 in			3.18 mm	0.125 in
Samtec Inc. ZW-07-08-G-S-295-103	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám			1	7	Gold	Through Hole	Solder			7.493 mm	0.295 in	3.353 mm	0.132 in	2.54 mm	0.1 in	2.616 mm			0.103 in
Samtec Inc. ZW-07-08-G-S-250-115	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám			1	7	Gold	Through Hole	Solder	0.115 in	2.921 mm	6.35 mm	0.25 in	4.191 mm	0.165 in	2.54 mm	0.1 in
Samtec Inc. ZW-07-08-G-D-240-118	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	2	14	Gold	Through Hole	Solder			6.096 mm	0.24 in	4.369 mm	0.172 in	2.54 mm	0.1 in
Samtec Inc. ZW-07-08-T-D-275-082	Black	0.53 in	13.462 mm			0.1 in	2.54 mm	2	14	Tin	Through Hole	Solder	0.082 in	2.083 mm	6.985 mm	0.275 in	4.394 mm	0.173 in	2.54 mm	0.1 in
Samtec Inc. ZW-07-08-G-S-320-100	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám			1	7	Gold	Through Hole	Solder	0.1 "	2.54 mm			2.794 mm	0.11 in	2.54 mm	0.1 in					0.32 in	8.128 mm
Samtec Inc. ZW-07-08-T-D-285-120	Black	0.53 in	13.462 mm			0.1 in	2.54 mm	2	14	Tin	Through Hole	Solder	0.12 in	3.048 mm			3.175 mm	0.125 in	2.54 mm	0.1 in					0.285 in	7.239 mm
Samtec Inc. ZW-07-08-G-S-400-065	Black	0.53 in	13.462 mm	10 Áin	0.25 Ám			1	7	Gold	Through Hole	Solder			10.16 mm	0.4 in	1.651 mm	0.065 in	2.54 mm	0.1 in	1.651 mm	0.065 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.22
		50	$ 0.99
		100	$ 0.81
		500	$ 0.62
Digikey	Bulk	1	$ 1.29

Description

General part information

ZW-07-08 Series

7 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

ZW Datasheet

Datasheet
