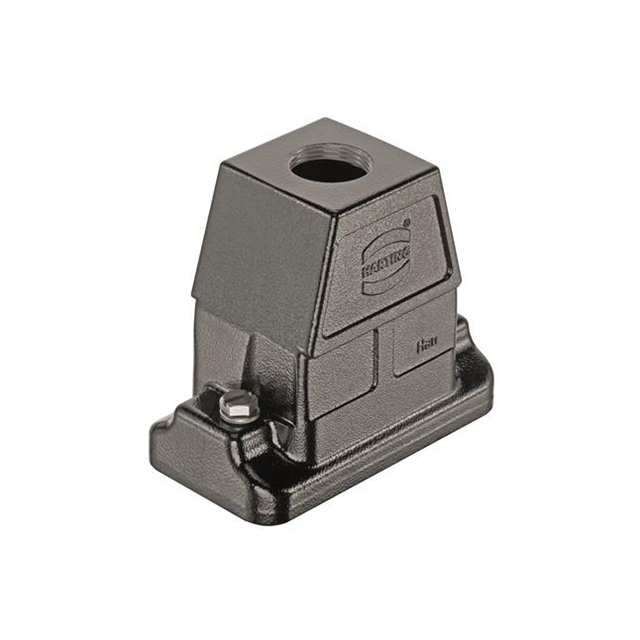

HAN 10 HP DIRECT M HOOD, TOP ENTRY, M20

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10 HP DIRECT M HOOD, TOP ENTRY, M20

Technical Specifications

Parameters and characteristics for this part

Specification	19397100445

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	4.173 "
Size / Dimension [x]	106 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	94 mm
Size / Dimension [z]	3.701 in
Style	Top Entry
Thread Size	M20

Part	Ingress Protection	Size	Housing Finish	Lock Location	Housing Material	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color
HARTING Technology Group 19397100547	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	10B	Powder Coated	Screw Locks on Hood	Aluminum Die Cast	M32	95 mm	57 mm	3.74 in	2.244 "	106 mm	4.173 "	Side Entry	125 °C	-40 °C	Hood	Black
HARTING Technology Group 19397100445	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	10B	Powder Coated	Screw Locks on Hood	Aluminum Die Cast	M20	94 mm	57 mm	3.701 in	2.244 "	106 mm	4.173 "	Top Entry	125 °C	-40 °C	Hood	Black
HARTING Technology Group 19397100546	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	10B	Powder Coated	Screw Locks on Hood	Aluminum Die Cast	M25	95 mm	57 mm	3.74 in	2.244 "	106 mm	4.173 "	Side Entry	125 °C	-40 °C	Hood	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M20 10B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
