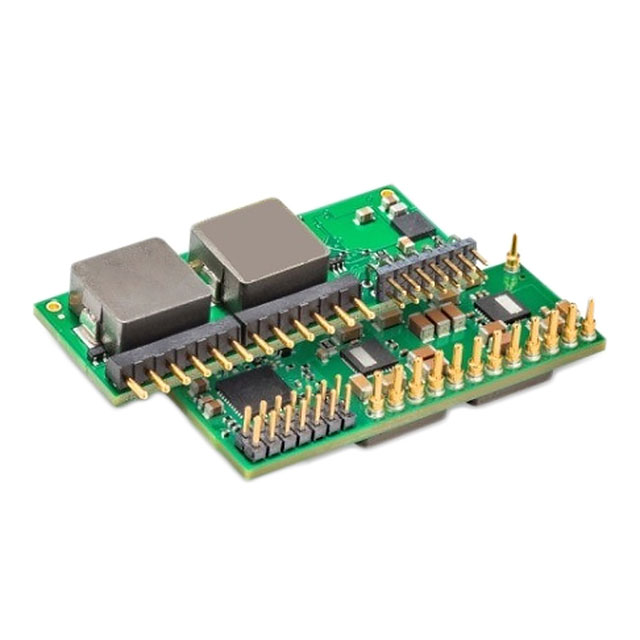

OKDX-T/90-W12-001-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.6-1.8V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OKDX-T/90-W12-001-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.6-1.8V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKDX-T/90-W12-001-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	90 A
Efficiency	94.3 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-30 ░C
Package / Case	26-SIP Module
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.37 "
Size / Dimension [z]	19.1 mm
Size / Dimension [z]	0.75 in
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	7.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

OKDX-T Series

Part	Type	Package / Case	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Applications	Power (Watts)	Control Features	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. OKDX-T/20-W12E-001-C	Non-Isolated PoL Module Digital	17-SIP Module	93.5 %	0.6 V	3.3 V	4.5 V	1	OCP OTP OVP UVLO	125 °C	-40 °C	14 V	17-SIP	20 A	0.61 "	1.04 in	15.6 mm	7.6 mm	0.3 "	26.3 mm	Through Hole	ITE (Commercial)
Murata Power Solutions Inc. OKDX-T/25-W12E-001-C	Non-Isolated PoL Module Digital	17-SIP Module	93.9 %	0.6 V	3.3 V	4.5 V	1	OCP OTP OVP UVLO	125 °C	-40 °C	14 V	17-SIP	25 A	0.61 "	1.04 in	15.6 mm	7.6 mm	0.3 "	26.3 mm	Through Hole	ITE (Commercial)	83 W
Murata Power Solutions Inc. OKDX-T/90-W12-001-C	Non-Isolated PoL Module Digital	26-SIP Module	94.3 %	0.6 V	1.8 V	7.5 V	1	OCP OTP OVP Remote On/Off UVLO	203 °F	-30 ░C	14 V		90 A	0.75 in	2 in			0.37 "	50.8 mm	Through Hole	ITE (Commercial)		Active High Enable	19.1 mm	9.5 mm
Murata Power Solutions Inc. OKDX-T/50-W12-001-C	Non-Isolated PoL Module Digital	13-SIP Module	94.6 %	0.6 V	3.3 V	4.5 V	1	OCP OTP OVP Remote On/Off SCP UVLO	125 °C	-40 °C	14 V		50 A	0.71 in	1.3 "			0.3 "	33 mm	Through Hole	ITE (Commercial)		Active High Enable	18.1 mm	7.6 mm
Murata Power Solutions Inc. OKDX-T/40-W12-001-C	Non-Isolated PoL Module Digital	20-SIP Module		0.6 V	3.3 V	4.5 V	1	OCP OTP OVP UVLO	125 °C	-40 °C	14 V		40 A	0.71 in	1.3 "			0.3 "	33 mm	Through Hole	ITE (Commercial)			18.1 mm	7.6 mm
Murata Power Solutions Inc. OKDX-T/20-W12V-001-C	Non-Isolated PoL Module Digital	17-SIP Module	93.5 %	0.6 V	3.3 V	4.5 V	1	OCP OTP OVP UVLO	125 °C	-40 °C	14 V	17-SIP	20 A	0.61 "	1.04 in	15.6 mm	7.6 mm	0.3 "	26.3 mm	Through Hole	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OKDX-T Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 90A 7.5V - 14V Input
